Current Measuring Module Set Current 10...100 A Width 55 mm Straight-through Transformer

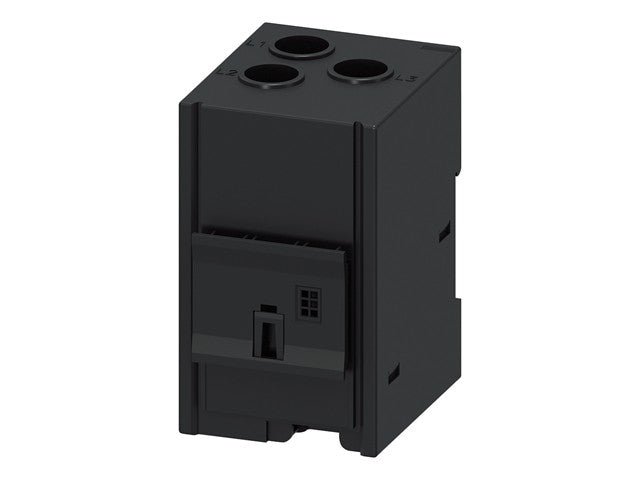

Current Measuring Module
Specifications
- Product type: Current measuring module
- Series: SIMOCODE pro 3UF7
- Measuring current range: 10 to 100 A

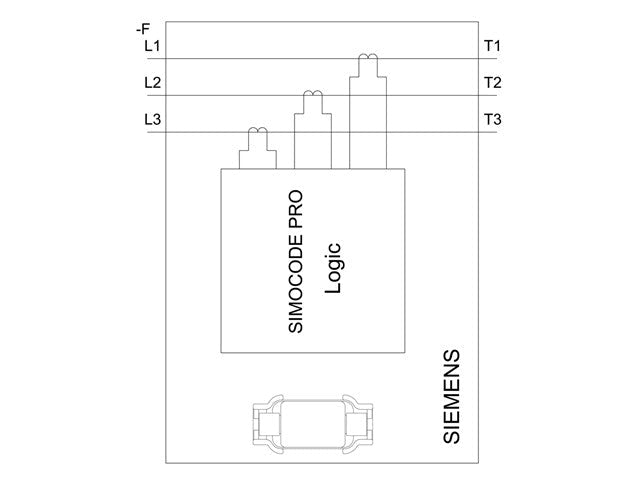

- Transformer type: Straight-through current transformer
- Overall width: 55 mm
- Rated insulation voltage: 690 V
- Surge voltage resistance: 6 kV
- Protection class: IP20
- Main circuit poles: 3-pole
- Operating frequency: 50–60 Hz
- Operating voltage:
- 110–690 V AC
- Mounting type:
- Screw mounting
- Snap-on mounting

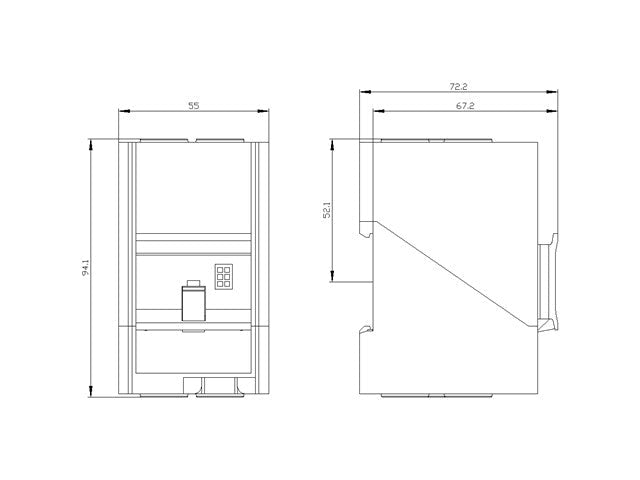

- Dimensions:
- Width: 55 mm
- Height: 94 mm
- Depth: 72 mm
- Operating temperature:
- -25 °C to +60 °C
- Storage temperature:
- -40 °C to +80 °C
- Maximum installation altitude:
- 4000 m
- Net weight:
- Approx. 0.31 kg
- Country of origin:
- Germany
- Certifications:
- CE
- RoHS compliant
Downloads
Additional Information
| Device | Module |
| Type | Current | Measuring | Module |
