Product Details

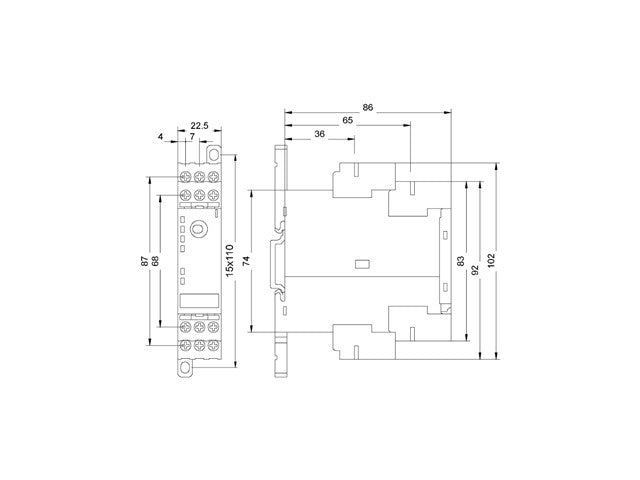

AS-i SlimLine Module S22.5 Digital 4 DI, IP20 4 x Input For 2-wire Sensor Screw Terminals
AS-i SlimLine Module
Specifications
- Product Name: SIMATIC HMI KTP900 Basic
- Model / Part Number: 6AV2123-2JB03-0AX0
- HMI Series: SIMATIC Basic Panels
- Display Type: TFT widescreen display, LED backlighting
- Screen Size (Diagonal): 9 inches
- Display Resolution: 800 × 480 pixels
- Display Colors: 65,536 colors
- Operation Type: Resistive touch screen + function keys
- Number of Function Keys: 8
- Supply Voltage : 24 V DC (19.2 – 28.8 V)
- Current Consumption: Approx. 230 mA
- Power Consumption(Typical): Approx. 5.5 W
- Mounting Method: Panel mounting
- Communication Interfaces: PROFINET (Industrial Ethernet), USB
- USB Ports: 1 × USB (host)
- Configuration Software: WinCC Basic (TIA Portal)
- User Memory: Approx. 10 MB
- Processor: Embedded ARM processor
- Buzzer: Yes
- Front Protection Rating: IP65
- Rear Protection Rating: IP20
- Operating Temperature: 0 °C to +50 °C
- Storage Temperature: –20 °C to +60 °C
- Mounting Orientation: Portrait or landscape
- Dimensions (W × H × D): Approx. 267 × 182 × 55 mm
- Panel Cut-out (W × H): Approx. 259 × 174 mm
- Weight: Approx. 1.1 kg
- Standards / Approvals: CE, cULus, RCM, KC
Additional Information
| Device | Module |
| Type | AS-i | SlimLine | Module |
