Product Details
Waterproof Toggle Switch Hi Power / Duty Cycle Single Pole - ON-NONE-ON - Form 1C (1c/o On-On) 12A 250VAC Screw/Fast-On Terminals

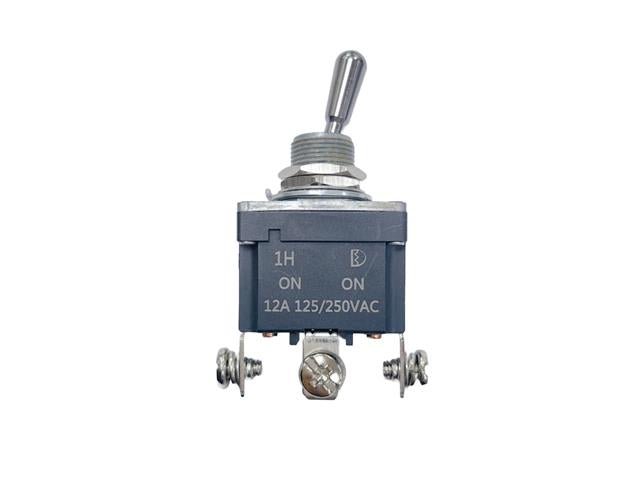

Hi Power Waterproof Toggle Switch
Specifications
- Contact Rating: 12 Amps @125/250 VAC.
- Mechanical Life: 30,000 make-and-break cycles.
- Contact Resistance: 20 mȟġmax. (initial value) @ 2-4VDC 100mA for both silver and gold plated contacts.
- Insulation Resistance: 1,000 Mȟġmin./500VDC
- Dielectric Strength: 1,500 Vrms min.@sea level.(initial value)
- Operating Temperature: -30°C to 85°C.
Materials
- Case: Diallyl phthalate (NYLON) (UL94v-0)
- Actuator: Brass, chrome plated
- Bushing: Zin+Silicon
- Contact: Copper, Silver plated
- Terminal: Copper, Nickel plated
Downloads
Additional Information
| Device | Switch |
| Type | Hi Power | Waterproof | Toggle |
