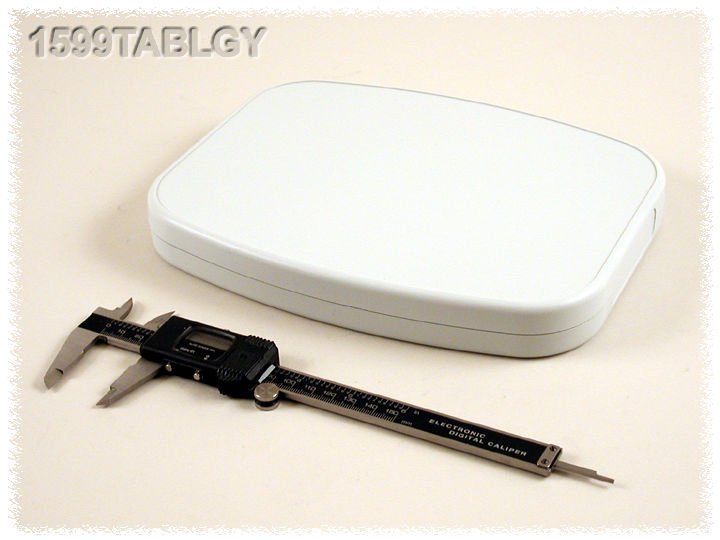

Enclosure Tablet Case ABS Grey Handheld Split Sides And End Panels 240 X 190 X 30MM IP54 Flame Retardent

ABS Tablet Case Grey Enclosure

Feature(s)

Low profile - ergonomically designed for a comfortable fit into the user’s hands.
Perfect for instrument or mobile data enclosures requiring a touch screen.
Choice of two sizes - both available with or without battery compartment.
Molded from flame retardant ABS plastic, choice of black or grey - material carries a UL flammability rating of 94V-0.
Enclosure is assembled with six (6) - M3-0.5 x 18 mm Phillips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
Integral brass bushings are factory inserted into the top half of the enclosure.
Lap joint construction provides protection against access of dust and splashing water. Designed to meet IP54.
P.C. board standoffs are molded into case top & bottom halves (see drawings or photos for more details).
Contains one end panel - removable for easy modification.
Bottom half of enclosure includes a square - molded inlay for labels.

Screws

100 pack of silver replacement cover screws (M3-0.5 x 18mm Flat Head), part number 1594MS100
100 pack of black replacement cover screws (M3-0.5 x 18mm Flat Head), part number 1594MS100BK
50 pack of optional PC board screws (#4 x 1/4" Self Tapping), part number 1593ATS50
100 pack of optional PC board screws (#4 x 1/4" Self Tapping), part number 1593ATS100
