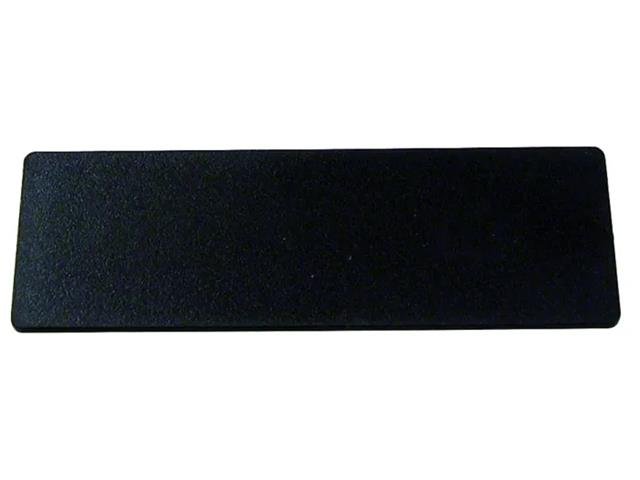

Plastic Panel Black for 1598E

Plastic Panel Black

Feature(s)

Desk top electronic instrument enclosure, ideally suited for mounting printed circuit boards.
Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
Designed to meet IP54.
Two sets of vertical 1.5 mm (0.062”) P.C. board guides are molded into case halves front and rear.
Front and rear panels are 1.6 mm (0.064”) brushed aluminum with protective paper on one side.
Enclosure halves are secured with M3 x 0.5” x 10 mm (0.39”) Phillips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
Integral horizontal P.C. card mounts on Eurocard centers.
