Product Details

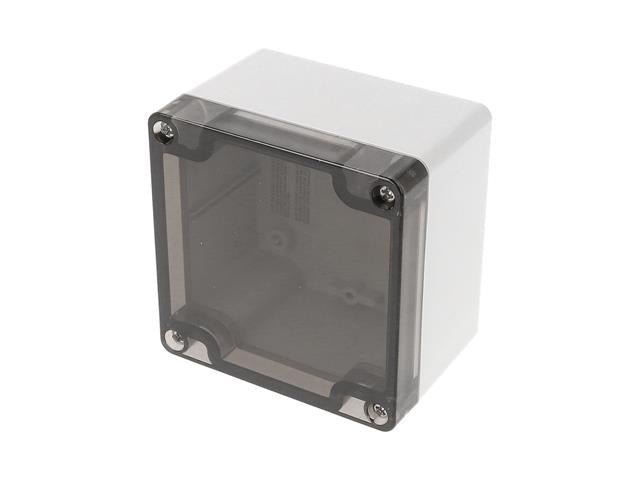

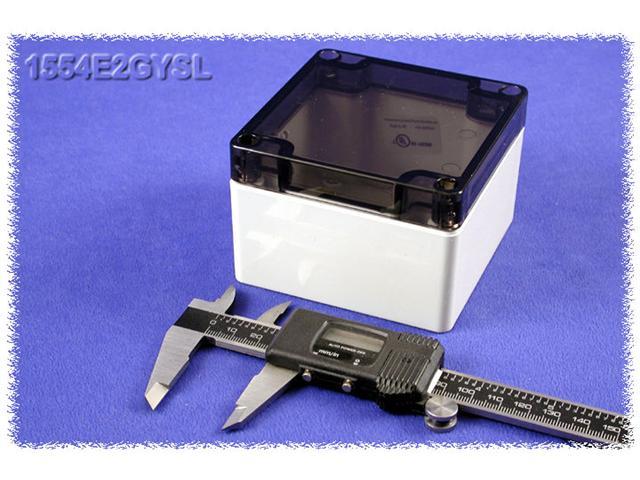

Heavy Duty Enclosure • Polycarbonate • 90x90x60mm • Grey with Smoked Lid
Heavy Duty Enclosure
Feature(s)
- Ideally suited for mounting printed circuit boards or DIN rail mounted components
- Clear polycarbonate lid allows for maximum visability of protected internal components
- Material - Polycarbonate (material carries a UL flammability rating of UL94 5V) - Recommended for outdoor use
- Color is a light gray (RAL 7035)
- Gasketed lid with two piece "tongue & groove" construction provides protection against access of oil, dust and water
- Gasket is factory poured using high temperature U.L. listed - silicone rubber gasket material
- Designed to meet IP 66 & NEMA 4, 4X, 12 & 13 ratings
- Lid is secured with self captivating - M4 stainless steel machine screws (included), threaded into integral stainless steel bushings (for repetitive assembly & disassembly)
- All stainless steel hardware to avoid corrosion caused by dissimilar metals
- Lid screws are self captivating (lid holes are threaded with the first installation of lid screws)
- Internal features are maximized for mounting options: Internal DIN rail mounting tabs - molded in -
- Options vary with size. Threaded (M3) integral brass inserts and/or standoffs (#6 self tapping screws) for P.C. board or inner panel mounting in all but the smallest size
- Vertical P.C. card guides (for 1.5 mm thick P.C. boards) are molded in all but the smallest size enclosure
- Smoked Lid
Specifications
| Size L x W x H | 3.5 in x 3.5 in x 2.4 in (89 mm x 89 mm x 61 mm) |
|---|---|
| Shipping Weight | 0.35 lbs (0.16 kg) |
| UNSPSC | 39121301 |
| UPC | 623980132518 |
| UL File # | E65324 |
| Packaging Type | shrink wrap |
| Material | Polycarbonate |
| Color | Light Gray |
| Flame Rating | UL94 V-0 |
| IP Rating | IP68 |
| Product Category | Enclosures |
| Type | Water-tight |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Max. P.C. Board Length (mm) | 77.47 |
| Max. P.C. Board Width (mm) | 78.41 |
Downloads
Additional Information
| Device | Enclosure |
| Type | Heavy Duty |
