Product Details

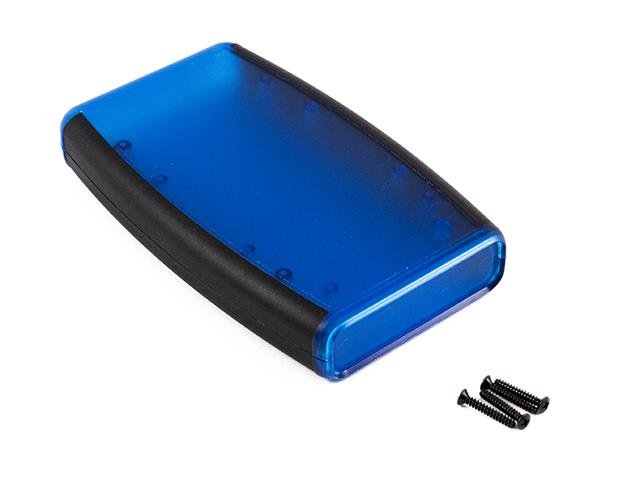

ABS Enclosure 147 mm x 89 mm x 25 mm Soft Side Black Translucent Blue
ABS Enclosure Soft Side Black Translucent Blue
Feature(s)
- Ergonomically designed for hand-held comfort.
- Choice of five sizes and six color combinations.
- Choice of two versions in the three larger sizes (ie...with or without battery door & compartment)
- Molded in general purpose ABS plastic with an overmold, soft plastic grip.
- Top cover is recessed for membrane display or keypad.
- P.C. board standoffs are molded into case (see drawings or photos for more details).
- Includes removable front panel (for easy modifications) and assembly hardware (except for smalles 1553A units).
- Battery door & compartment version includes 4 battery clips (for 2 - AA batteries) and a 9 volt (PP3) battery clip.
Specifications
| Size L x W x H | 5.8 in x 3.5 in x 0.98 in (147 mm x 89 mm x 25 mm) |
|---|---|
| Shipping Weight | 0.24 lbs (0.11 kg) |
| Packaging Type | shrink wrap |
| Material | ABS Plastic |
| Color | Trans. Blue |
| Flame Rating | UL94 HB |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Hand-held, soft sided |
| Max. P.C. Board Length (mm) | 139 |
| Max. P.C. Board Width (mm) | 73 |
Downloads
Additional Information
| Model | 1553DTBUBK |
| Device | Enclosure |
| Type | ABS | Soft Side | Black | Translucent Blue |
