Product Details

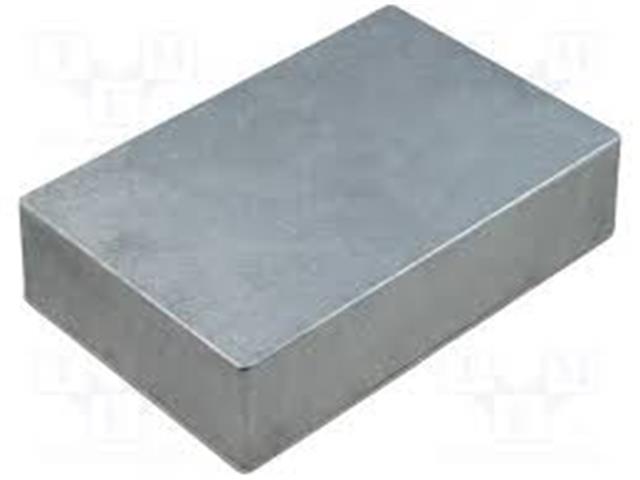

Enclosure Diecast Aluminium Unpainted 222 mm x 146 mm x 51 mm IP54
Diecast Aluminium Unpainted Enclosure
Feature(s)
- Rugged, diecast aluminum alloy (tough yet easy to machine), electronic instrument enclosure.
- Available in natural vibra finish OR in light textured, black powder paint.
- Unpainted version is vibra finished for a smooth surface with no sharp edges.
- Painted version is painted with tough satin black polyester powder paint for a lasting finish, even after machining. Black screws are included to enhance the assembled appearance.
- Lap joint construction protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding. When water-tight gaskets are installed,

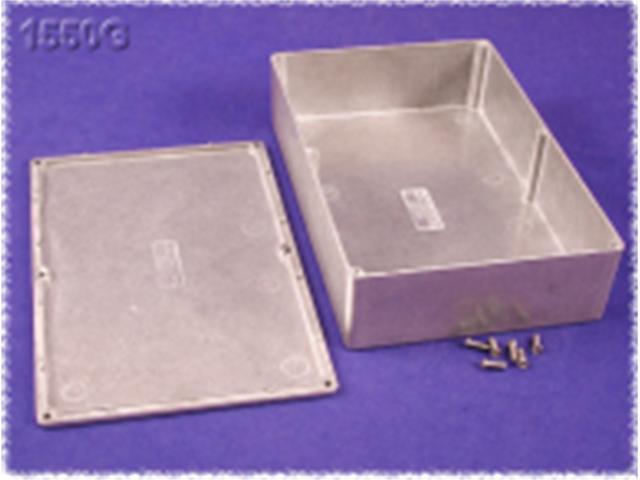

- Four M3.5 x 0.6 x 12 mm long stainless steel, Philips head, machine screws secure lid - into factory tapped holes.
- Designed to meet IP 54 without a gasket or IP66 with a gasket. IP67 upgraded gaskets are available.
- No internal ribs for easy installation of connectors without interference or additional milling.
- Low side wall draft angle (2 degrees or less) for easy P.C. board mounting.
- Add 0.16" (4 mm) to enclosure depth for lid
Specifications
| Size L x W x H | 8.74 in x 5.75 in x 2.01 in (222 mm x 146 mm x 51 mm) |
|---|---|
| Shipping Weight | 1.3 lbs (0.59 kg) |
| Packaging Type | shrink wrap |
| Material | Aluminum (Die-Cast Alloy) |
| Color | Natural Aluminum |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Die-cast box |
Downloads
Additional Information
| Device | Enclosure |
| Type | Diecast | Aluminium | Unpainted |
