Product Details

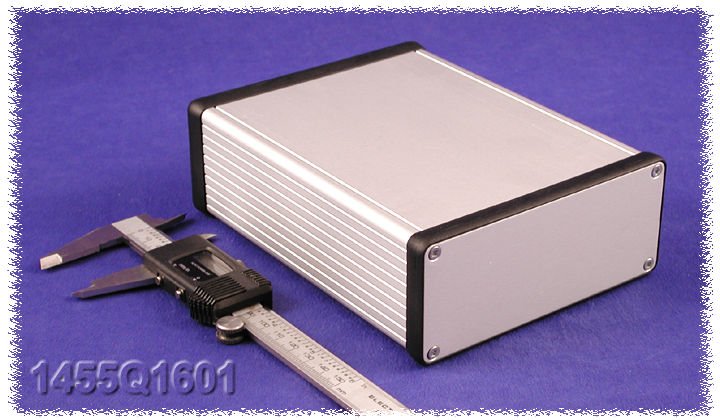

Aluminium Enclosure 160 x 125 x 51.5 mm
Features
- Designed to house P.C. boards or for equipment interfacing
- Sized for standard Eurocards
- P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body
- Rugged body constructed from extruded aluminum with a minimum thickness of .06” (1.5 mm)
- Extruded body includes a slide removable “belly” plate - except in smaller sizes “A” through “D”
Specifications
| Product Type | PC Board Enclosure |
|---|---|
| Series | 1455 |
| Body Material | Extruded Aluminium |
| Bezel Material | Polycarbonate |
| External Dimensions | 160 x 125 x 51.5 mm |
| External Length | 160 mm |
| External Width | 125 mm |
| External Height | 51.5 mm |
| Colour | Clear |
| IP Rating | IP54 |
| Lid Colour | Clear |
