Product Details

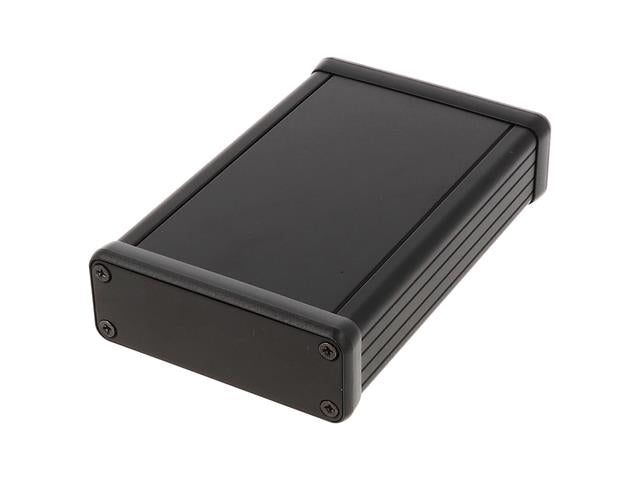

Extruded Aluminium Enclosure Black Anodized 120 x 78 x 27mm Metal End Plates
Extruded Aluminium Enclosure Black Anodized
Feature(s)
- Designed to house PC boards or for equipment interfacing.
- PC boards mount horizontally by sliding into internal slots extruded into the enclosure body.
- Rugged body constructed from extruded aluminum with a minimum thickness of 0.06” (1.5 mm).
- Many sizes include a removable sliding plate.
Specifications
| Size L x W x H | 4.72 in x 3.07 in x 1.06 in (120 mm x 78 mm x 27 mm) |
|---|---|
| Shipping Weight | 0.38 lbs (0.17 kg) |
| Packaging Type | shrink wrap |
| Material | Aluminum (Extruded) |
| Color | Black |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | PC Board Enclosure |
| Max. P.C. Board Length (mm) | 119 |
| Max. P.C. Board Width (mm) | 74 |
Downloads
Additional Information
| Device | Enclosure |
| Type | Extruded | Aluminium | Black | Anodized | Metal End Plates |
| Dimensions | 120 x 78 x 27mm |
| Base Colour | Black |
| Degree of Protection | Extruded Aluminium Enclosure Black Anodized 120 x 78 x 27mm Metal End Plates |
