Product Details

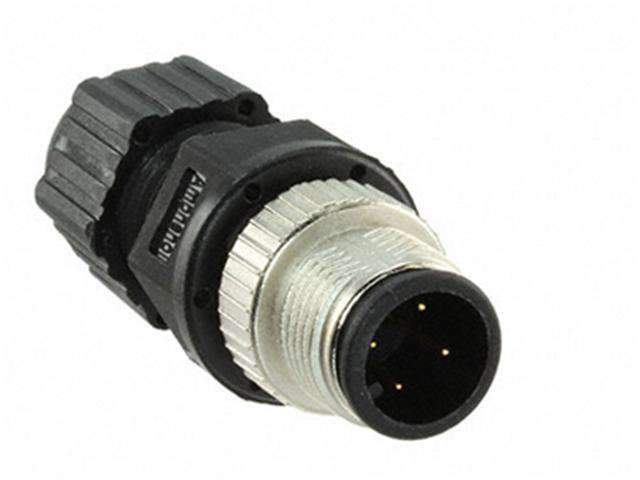

| Circular Connector M12 D Code Profinet Cable Male Straight 4 Pole Solder Term. PG9 Cable Entry IP68 |
- Current Rating : 1.5A~28A
- Material
- Contacts: Copper Alloy, Gold Plated
- Connector Body (Housing) : Nylon+GF or PU, UL
- Recognized Metal Screw Nut: Zinc Alloy or Copper Ally, Nickel Plated
- Waterproof Rating : IP65, IP67~68
- Temperature Range
- PVC Cable: -20°C~80°C
- PU Cable: -20°C~85°C
- Contact Resistance : ≤10mΩ
- Standard Cable Length : 01~99m
- Mating Cycle : 100*Minimum
- Vibration : 10 ~ 500 Hz and 0.35 mm
- Standards
- IEC 61076-2-101
- IEC 61076-2-104
| Gender | Male |
| No. of Contacts | 4 |
| No. of Pins | 4 |
| Colour | Black |
| Series | M12 |
| Termination | Solder Cup |
| Mount | Inline |
| Degree of Protection | IP68 |
