Product Details

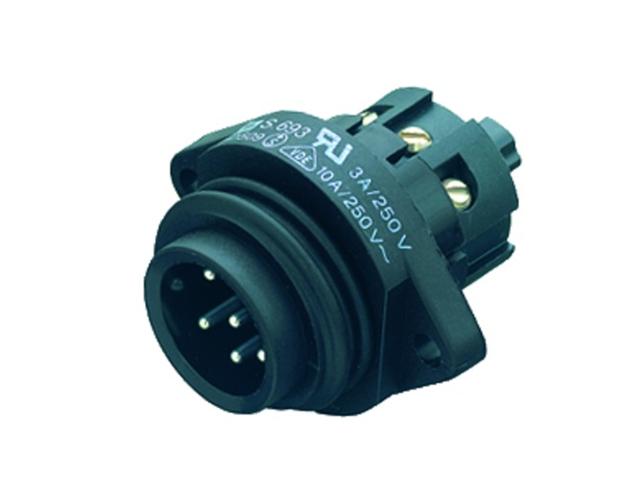

Circular Connector RD24 Machinry Panel Male 7 Pole Flang Mount Screw Term VDE Approved IP67
Circular Connector RD24 Machinry Panel Male
Specifications
General Values
- Connector Design : male panel mount connector
- Connector Locking System : Bolted
- Termination : Screw
- Wire Gauge (mm) : max. 1,5 mm²
- Wire Gauge (AWG) : max. 16
- Upper Limit Temperature : 100 °C
- Lower Limit Temperature : -40 °C
Cable Data
- Approval 1 : UL
- Approval 2 : ESTI+
- Approval 3 : VDE
Electrical Values
- Rated Voltage : 250 V
- Rated impulse voltage : 4000 V
- Pollution Degree : 3
- Overvoltage Category : II
- Insulating Material Group : II
- Rated Current (40 °C) : 10 A(8A UL)
- Volume Resistivity : ≤ 5 mΩ
- EMC Compliance : Shielded is not possible
- Degree of Protection : IP67
- Mechanical Operation : > 500 Mating cycles
Material
- Contact Material : CuSn (mESSING)
- Contact Plating : Ag (gold)
- Contact Body Material : PBT
Downloads
Additional Information
| Device | Connector |
| Type | Male | Circular | RD24 | Machinry | Panel |
| Highlights | 7 Pole | Flang Mount | Screw |
