Product Details

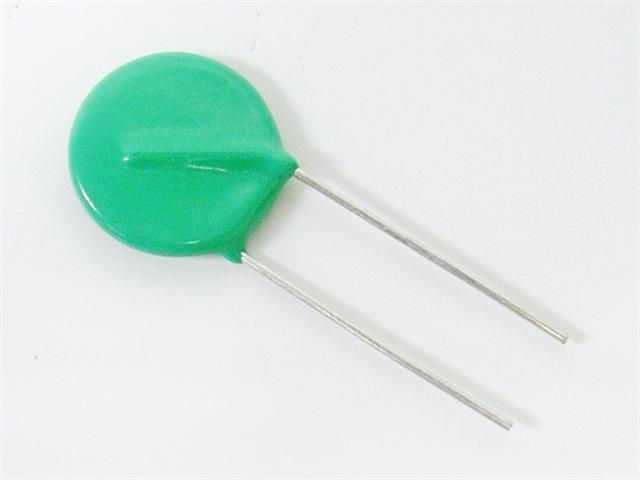

MOV Metal Oxide Varistor Ø 20mm • VACrms= 175V • Prated= 1W • Energy10/1000 uS= 127 J
Overview
ZOV varisotrs are nonlinear 2-electrode semiconductor voltage-dependant resistors, which are designed for transient voltage suppression and surge energy absorption.
Feature(s)
- Large absorbing transient energy capability
- Very short response time
- Low Clamping ratio and no follow-on current
- High resistance Insulation Material prevents the electric arching to the adjacent devices
Additional Information
| Device | MOV Metal Oxide Varistor |
| Type | Zinc Oxide |

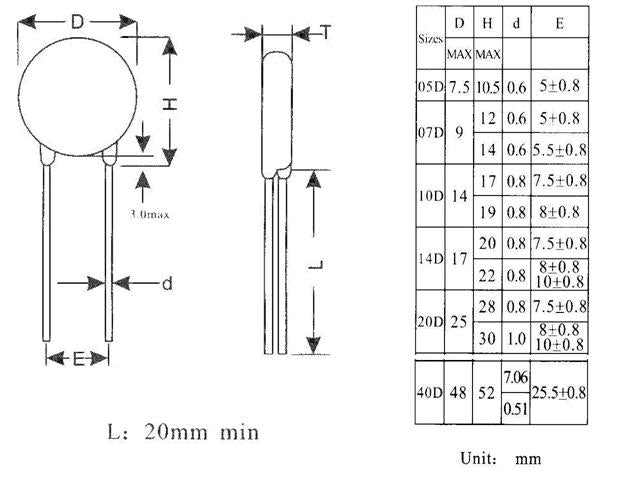

| Size | 20mm |
| Max Allowable ACrms Voltage (V) | 175V |
| Max Allowable DC Voltage (V) | 225V |
| Varistor Voltage @1mA (V) | 270V |
| Max Peak Current @8/20uS (A) | 6500A |
| Max Energy 10/1000 uS (J) | 127 |
| Rated Power (W) | 1W |
| Typical Capacitance @ 1kHz (pF) | 1500F |
