Product Details

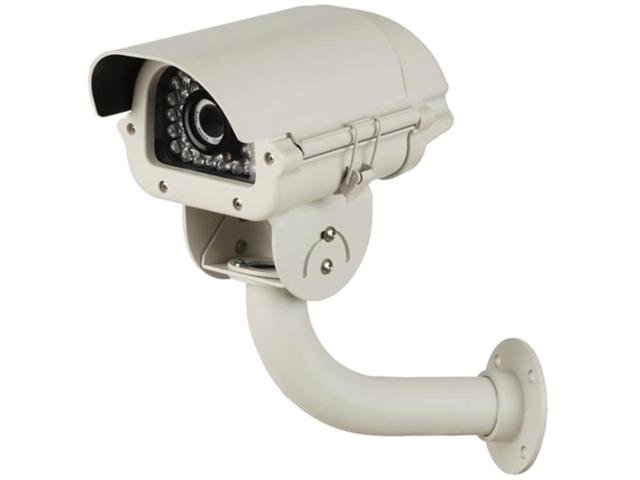

Waterproof Car Number Plate Capture Colour Camera 1/3" Sony Super HAD CCD • Variable Shutter Speed • 480 TVL • 6~15mm Varifocal Lens • 36 pcs F8 Visible Light LED 40m • DC12V
Specifications
- Signal System : PAL
- Sensor CCD : 1/3inch Sony Super HAD CCD
- Pixel Effective : 752 (H) x 582 (V)
- Horizontal Resolution : 480 TV Lines
- Lens : 6~15mm varifocal
- The shutter speed is :
- Auto: 1/50~1/10,000s
- Manual: 1/50 1/120 1/500 1/1000 1/10000s
- (Adjustable by opening camera case)
- Minimum Illumination : 0 LUX (IR ON)
- S/N Ratio : More than 60 dB
- Distance : 40 Metre
- View Angle : 22~54°
- LED : 36 unit F8 Visible light LED ; Wave Length : 840 nM
- Average life : 20000 hours
- Water Resistance : IP65
- Video Output : 1Vp-p 75O. Y/C Separated
- Connector Video : BNC
- Operation Temperature : -20°C to +50°C
- Supplied Power : 12V (+/-10%)
Additional Information
| Device | Camera |
| Type | Car Number Plate Capture |
| Highlights | 1/3" SONY Super HAD CCD |
| Image Sensor | 1/3" SONY Super HAD CCD |
| Horizontal Definition (Resolution) | 480 TV Lines |
| Viewing Angle | 22~54° |
| Minimum Illumination | 0 Lux (IR on) |
| Lens | 6~15mm Verifocal Lens |
| Power Supply | DC12V |
| Open Transmission Distances | 40m |
| TV System | PAL |
| Validity Pixel | 752(H) x 582(V) |
