Product Details

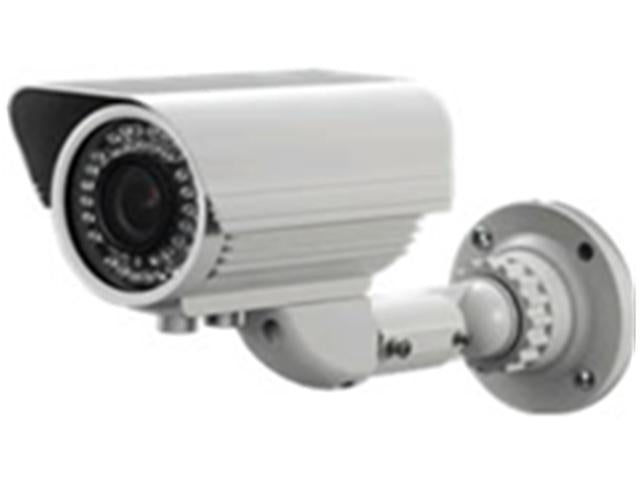

1201 TVL IR ICR Bullet CMOS Colour Camera with 2.8~12mm Varifocal Lens, 35m IR Range and Auto IR cut filter
1200TV IR CCTV Bullet Camera
Specifications
- System : PAL
- Image Sensor : Sony IMX138 720P Sensor
- Picture Elements : PAL:1280(H)x720(V)
- Horizontal Resolution : 1200TVL
- Video Output : 1.0Vp-p Composite Output (75O / BNC)
- S/N Ratio : ≥48dB
- Min.Illumination : 0 Lux(IR On)
- Electronic Shutter : 1/50(1/60)S~1/100,000S
- White Balance : Auto
- Gamma Ratio : >0.45
- Lens : 2.8~12mm Megapixel lens
- Operating Temperature : -10~+50°C
- Humidity : 0 to 95%RH(non-condensing)
- Power/Current : DC 12V
- Sync System : 2:1 Interlace internal Sync.
- IR LED : 42 5mm LEDs
- IR Distance : 35m
- IR Status : On
- Outdoor/Indoor : Outdoor
Additional Information
| Device | Camera |
| Type | Bullet | IR |
| Highlights | ICR | Outdoor | High Resolution |
| Image Sensor | Sony IMX138 720P Sensor |
| Horizontal Definition (Resolution) | 1200TVL |
| Minimum Illumination | 0Lux(IR On) |
| Lens | 2.8~12mm Varifocal |
| Power Supply | 12VDC |
| Open Transmission Distances | 35m |
| TV System | PAL |
| Validity Pixel | 1280(H) x 720(V) |
