Product Details

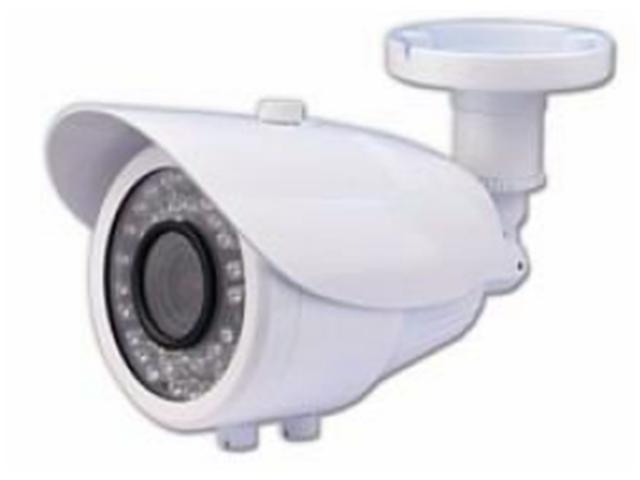

Outdoor IR Waterproof Colour Camera High Resolution with Auto IR cut filter • ¼" CMOS Sensor • 800 TV Lines • DC12V • 2.8~11mm Varifocal Lens • IR Range 30~40m
Specifications
- Signal System : PAL
- Sensor CCD : 1/4” CMOS Sensor
- Pixel Effective : 752 (H) x 582 (V)
- Horizontal resolution : 800 TV Lines
- Lens : Varifocal 2.8 ~ 11 mm
- Minimum Illumination : 0 LUX (IR ON)
- S/N Ratio : More than 52dB
- IR Range : 30~40m
- View Angle : 30.3~93.5°
- LED wave length : 42 unit @ 840 nM
- Average Life : 20000 hours
- Water Resistance : IP65
- Video Output: 1Vp-p 75ohm | Y/C Separated
- Connector video : BNC
- Operation Temperature : -20°C to + 50°C
- Supplied Power : l2Vcc (±10%)
Additional Information
| Device | Camera |
| Type | Waterproof |
| Highlights | ¼" CMOS Sensor | 800 TVL |
| Horizontal Definition (Resolution) | 800 TV Lines |
| Viewing Angle | 30.3~93.5° |
| Minimum Illumination | 0 Lux（IR on） |
| Lens | 2.8~11mm Verifocal IR Lens |
| Power Supply | DC12V |
| Open Transmission Distances | 30~40m (IR) |
| TV System | PAL |
| Validity Pixel | 752(H) x 582(V) |
