Product Details

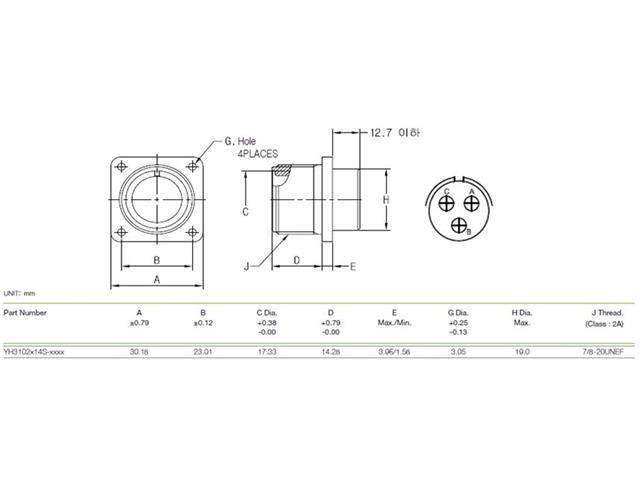

| Circular Connector MIL-DTL-5015 Style Scw Lok SQ. Flange Panel Recpt 3 Pol #16 Cont. Female Soldr. 13A 500VAC/700VDC (MS3102A14S-5S)(97-3102A-14S-7S) |
| Device | Connector |
| Type | Screw Lock | Square Flange Panel | Receptacle | 3 Poles |
| Gender | Female |
| No. of Contacts | 16 |
| No. of Pins | 3 |
| Mates With | XY3106A-14S-7S |
| Termination | Solder |
| Electrical Rating | 13A 500VAC/700VDC |
