Product Details

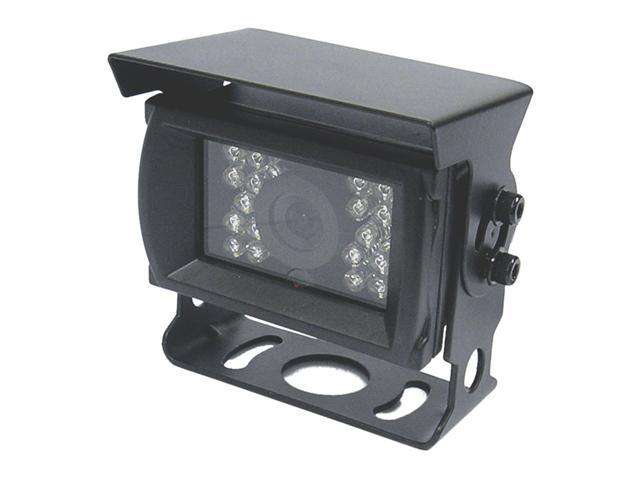

Rearview IP65 HD IR Camera with 600 TVL Resolution and 62.1° Viewing Angle
Overview
Features
Specification
- Signal System : PAL
- Sensor CCD : 1/3” Sony CCD
- Pixel Effective : 752(H) X 582(V)
- Horizontal resolution : 600 TV Lines
- Lens : 3.6 mm
- Minimum Illumination : 0.5 Lux(IR Off); 0 LUX (IR ON)
- S/N Ratio : > 52 dB
- Distance: 15m
- View Angle: 62.1°
- LED Wave Length : 18 units: 840 nM
- Average life : 20000 hours
- Electronics shutter : 1/50~1/10000, Auto
- BLC : Off
- AGC : Auto
- White balance : ATW
- Water Resistance : 1P65
- Video Output : 1Vp-p 75Ω Y/C Separated
- Connector video : BNC
- Operating Temperature : -20°C to +50°C
- Supplied Power : 12VDC (+/-10%):
Additional Information
| Image Sensor | 1/3" SONY Super CCD |
| Horizontal Definition (Resolution) | 600 TV Lines |
| Viewing Angle | 62.1° |
| Minimum Illumination | 0.5 Lux (IR-LED Off), 0 Lux (IR-LED On) |
| Lens | 3.6mm |
| Power Supply | 12VDC |
| TV System | PAL |
| Validity Pixel | 500 (H) x 582 (V) |
