Product Details

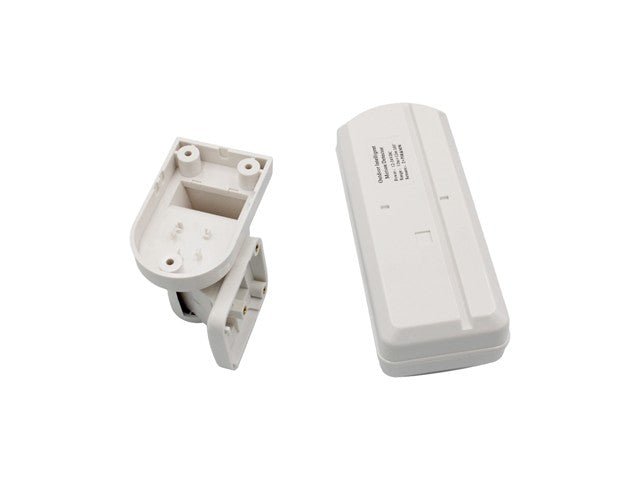

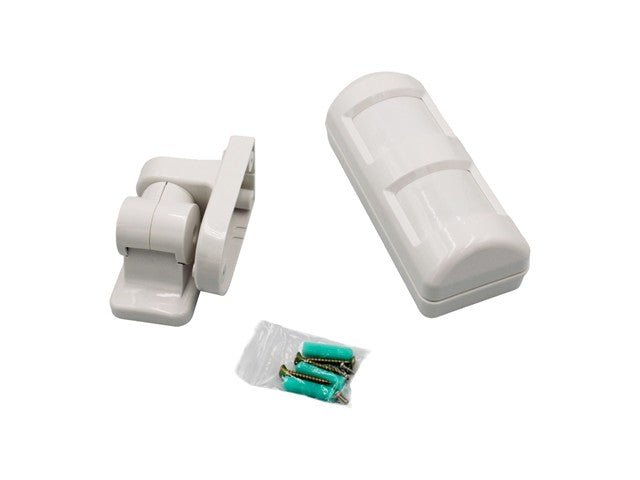

Outdoor Dual PIR with Microwave and Anti-masking with Detection Distances Selectable and 25Kg Pet Immunity
Outdoor Dual PIR with Microwave and Anti-masking
Feature(s)
- Outdoor Detector
- Dual PIR with Microwave and Anti-masking
- 25Kg Pet Immunity
- Adjustable Settings with 3 Different Detection Modes
- with Two Sensitivities
- Power Input : 9-16VDC
- Install Height : 1.5~2,4m
- Includes Mounting Bracket
Specifications
- Power Supply : 9-16VDC
- Current : 30mA
- Install high : 1.5m.-2.4m
- MW frequency : 10.525GHz
- Alarm time : 3s
- Anti RFI/EMI : 0.1-500MHz/3V/m
- Anti-white Light : >10000 LUX
- Alarm Output : 100mA/24V
- Mask Output : 100mA/24V
- Temperature : -10°C/+55°C
- Humidity(RH) : 95%
- Sensitivity : H /L Select
- Detect speed : 0.2m/s to 3.5m/s
- Dimensions (HxWxD) : 160x65x50.5mm
- Coverage : 12m x 12m 100 (wide lens), 12m x 3m 12 (curtain lens), 12m x 12m 100 (pet lens)
Downloads
Additional Information
| Device | PIR |
| Type | Dual | Outdoor | Microwave | Anti-masking |
| Highlights | Detection Distances Selectable | 25Kg Pet Immunity |
