Product Details

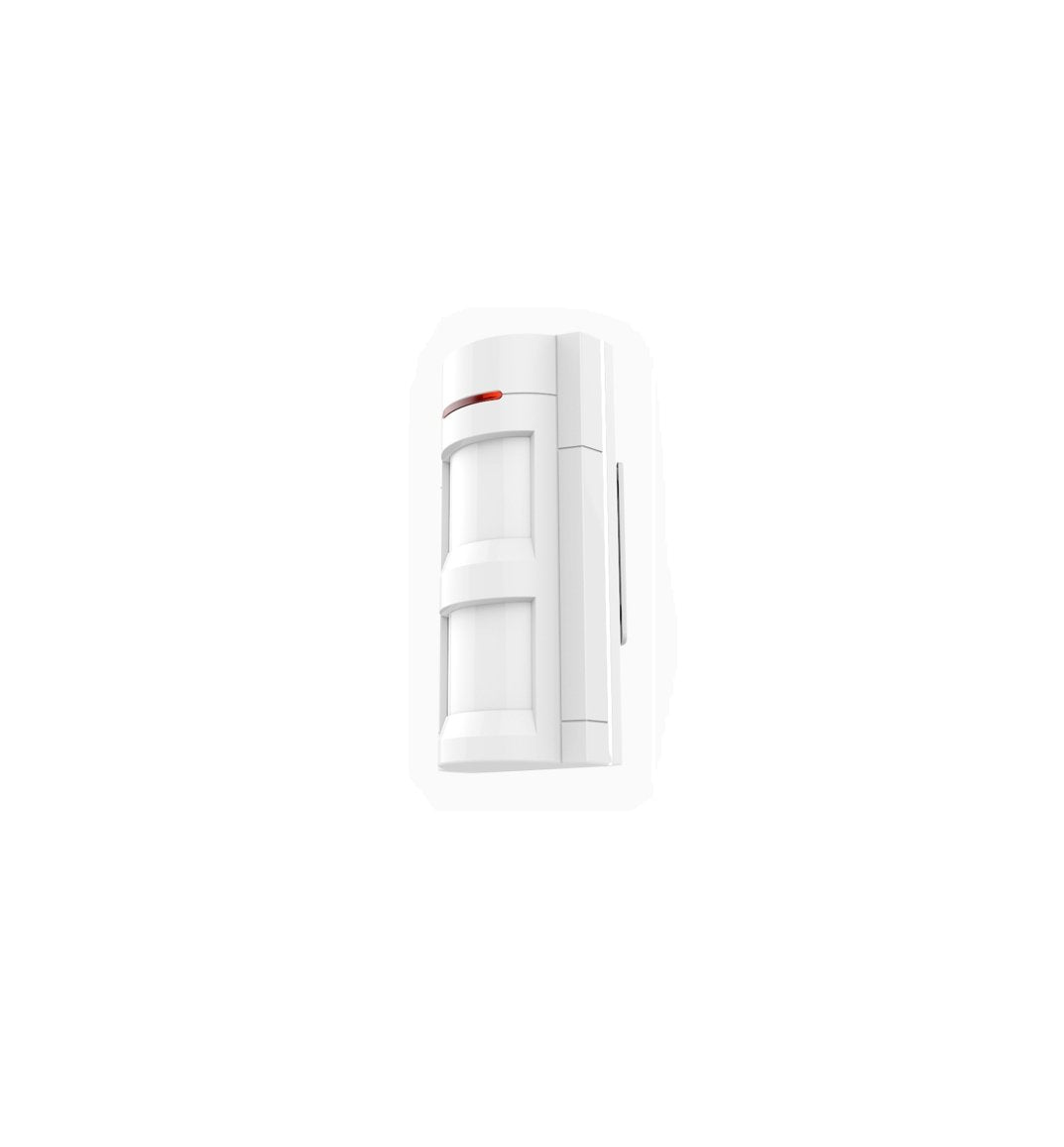

Outdoor Digital Dual Curtain PIR Detector Pet Immunity
Overview
Features
- Microprocessor Controlled
- Anti White Light Special Filter Lens (10000 Lux)

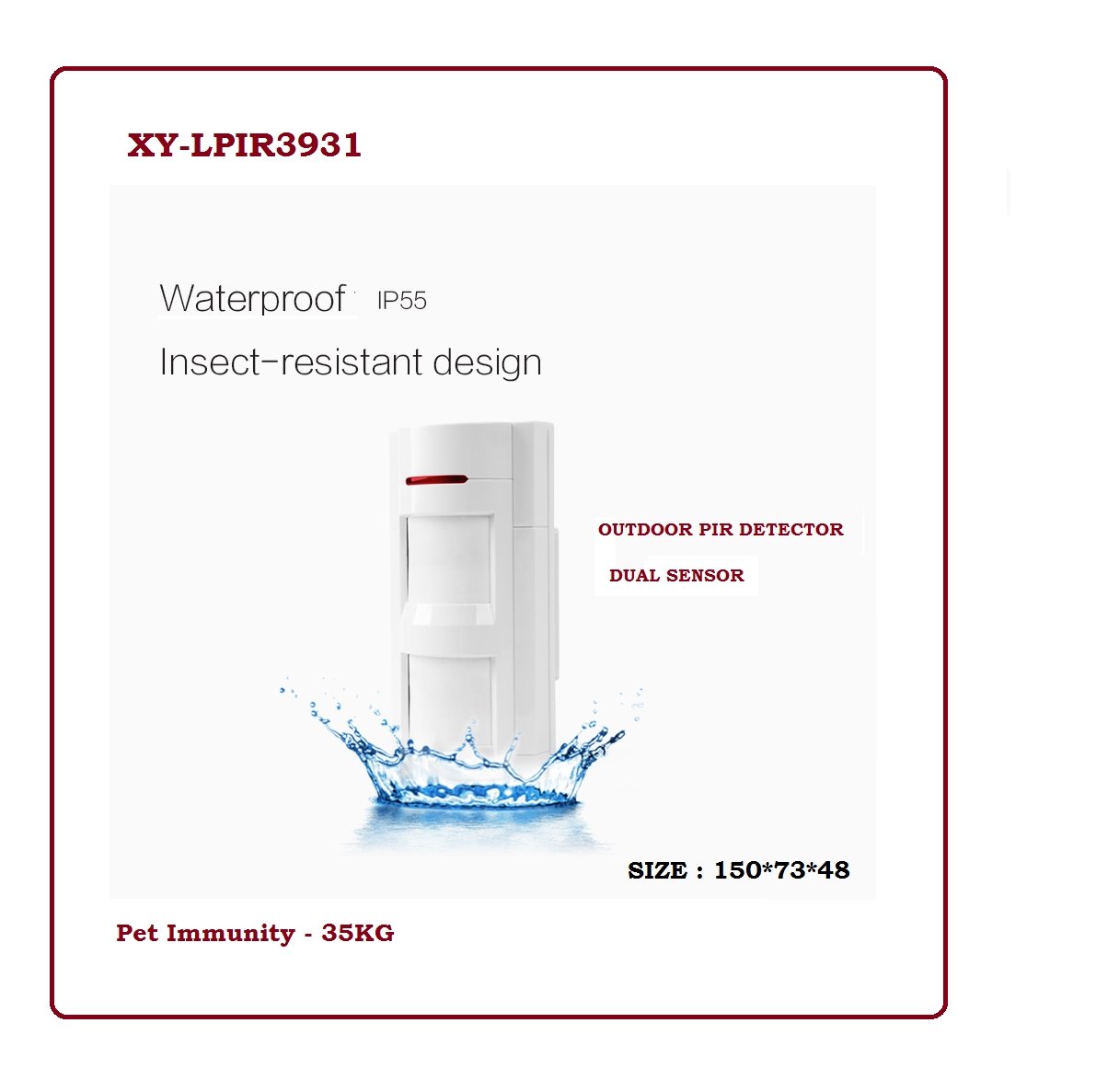

- Waterproof, Suitable for Outdoor Environment
- Fully sealed bug immunity
- Pet (<20Kg) Immunity
- Pulse Count Selectable
- Wide-angle lens and curtain lens option
- Dual Sensor Detection to avoid False Alarms
- LED ON & OFF jumper Selectable
- Pulse Count jumper Selectable
- Auto Temperature Compensation reduces False Alarms
Specification
- Operating Voltage : 9~16VDC
- Supply Current : 28mA 12VDC
- Operating Temperature :-10°C ~ +50°C
- Sensor Type : Dual Low noise Pyroelectric IR Sensor
- Mounting : Wall Mounting
- Installation Height : aprox 2.2m

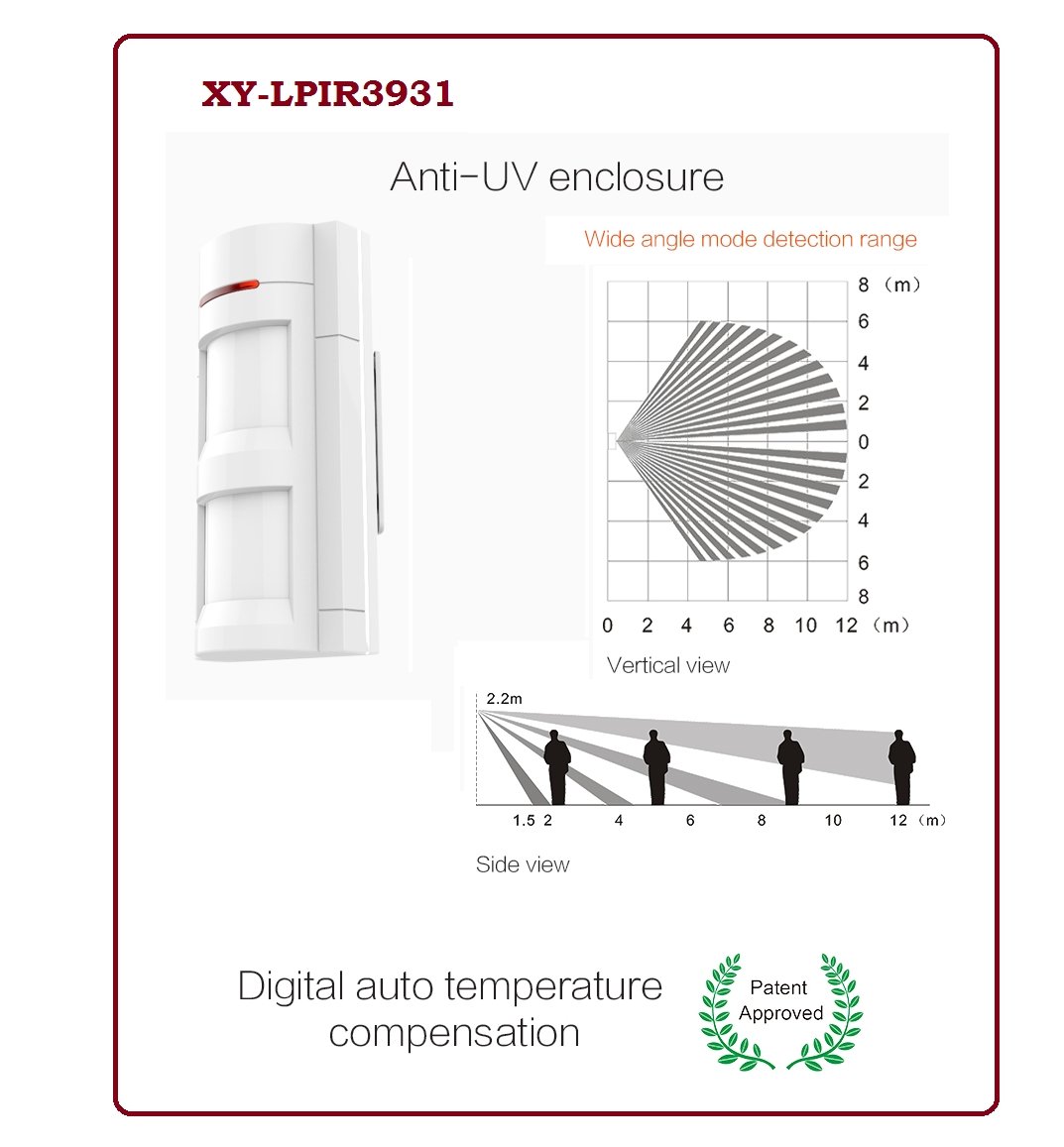

- Detecting Angle: wide-angle lens - 110°, Curtain lens - 15°
- Detecting Range : wide-angle lens - 12m, Curtain lens - 8m
- Alarm Output : N.O./N.C. 28VDC 80mA max
- Anti Tamper Switch : N.C.28VDC 100mA max
- Size : 150mm x 73mm x 48mm
