Product Details

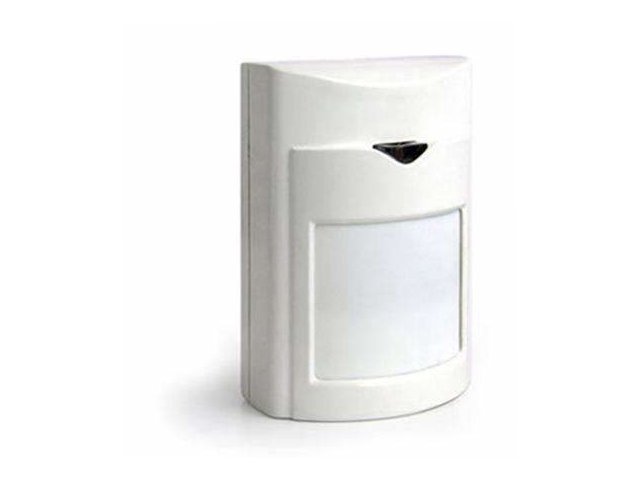

Digital DSP PIR Detector 12m 110°
Overview
Features
- 8-bit CMOS Processing
- Auto Temperature Compensation reduces False Alarms
- White Light Immunity
- LED ON & OFF jumper Selectable
- Pulse Count jumper Selectable
- Metal Shield with High EMI/RFI Immunity
- Alarm Output N.C./N.O. jumper Selectable
Specification
- Operating Voltage : 9~16VDC
- Supply Current : 20mA 12VDC
- Operating Temperature :-10°C ~ +50°C
- Sensor Type : Dual Element IR Sensor
- Digital Pulse : 1 or 2
- Mounting : Wall Mounting
- Installation Height : aprox 2.2m
- Detecting Angle: 110°
- Detecting Range : 12m
- Alarm Output : N.O./N.C. 28VDC 80mA max
- Anti Tamper Switch : N.C.28VDC 100mA max
- Size : 90mm x 62mm x 44mm
