Product Details

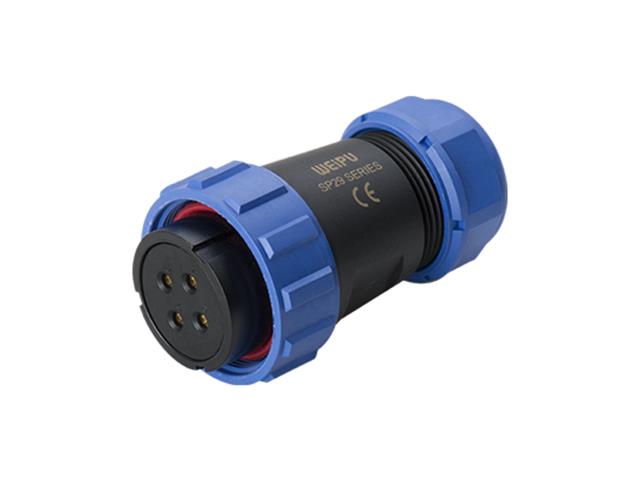

Circular Connector Plastic IP68 Screw Lock Cable End Recept 4 Pol Female Solder Termination 25A Cable Od=13-16mm (No Cap)
Circular Connector Plastic IP68 Screw Lock Cable End
Feature(s)
- Coupling: Threaded
- Shell material: PC, Nylon66, fire resistance: V-0
- Insert material: PPS, max temperature 260 ℃
- Contact material: Brass with gold plating
-
Termination Solder: SP13, SP17, SP21, SP29
Crimp: SP17, SP21, SP29
Screw: SP21, SP29 ( Ø2.5, Ø3, Ø3.5mm contact)
-
Cable outer diameter range: SP11: 4-6.5mm
SP13 I: 4-6.5mm, II: 5-8mm
SP17: 6-10mm
SP21 I: 4.5-7mm, II: 7-12mm
SP29: 13-16mm - IP rating: IP68
- Mating cycle: 500
- Temperature range-40 ~ + 85℃
- Insulation resistance: 2000 MΩ
- Rated Current (A): 25
- Contact Diameter (mm): Ø2.5X4
- Rated Voltage (AC. V): 500
- Tested voltage (AC. V) 1: 1500
- Contact resistance(MΩ): 1
- Termination: Solder/Screw
- Wire size(mm²/AWG) : ≤4/11
-
Wire Size For Screw Termination: ≤1.5/15
Additional Information
| Device | Connector |
| Type | Screw Lock Cable End | Female Solder Termination |
