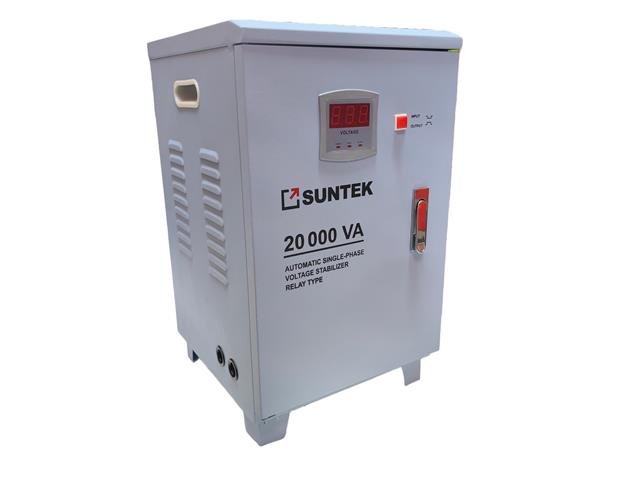

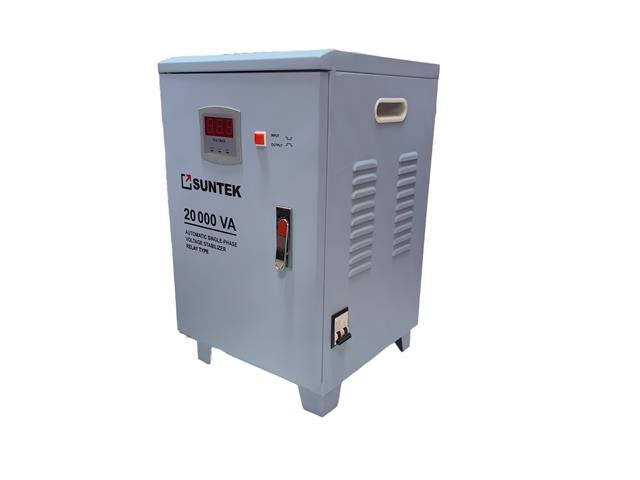

Single Phase Voltage Stabilizers - Relay type. Input: 120 ~ 285VAC; Output: 220VAC (+/-8%) 20,000VA - Metal Case w/Digital Display
Single Phase Voltage Stabilizers
Feature
- The Powerful Stabilizer For The Cottage, Production And Country House!
- 100 Amper Automat With Bypass, Lightning Protection, Full-Power Pulling Coil From 140 Volts At The Input, A Microprocessor Control Circuit, A Powerful Terminal Block, A Forced Cooling Fan - A Stabilizer Filling That Allows You To Drop Everything Anxiety Due To Poor Tension In The House.
- It Is In High Demand Among Those Living In The Country (House, Cottage), Owners Of Small Production Sites, Workshops, As Well As Owners Of “Demanding” Equipment - Power Tools (Compressors, Pumping Stations, Hvac Equipment, Etc.).
- Installation In A Three-Phase Network For Each Phase Will Provide 60 Kva Of Power, And Thereby Eliminate The Possibility Of Complete Loss Of The Network.
- When Connecting A Three-Phase Load (Machines, Motors, Etc.), It Is Enough To Additionally Install A Phase Control Relay.
Specifications
| Brand |
Suntek |
Model No. |
TM-20000VA |
| Item Name |
Voltage Stabilizer |
Rated Power |
20000 VA |
| Input Voltage Range |
120-285 V |
Output Voltage Range |
220 V |
| Maximum Current |
100 A |
Stabilization Type |
Relay |
| Adjustment |
Stepwise |
Network Connection Method |
Terminal Block |
| Overall Dimensions |
35х33х54 cm |
Output Voltage Accuracy |
0.08 |
| Distortion Sine Wave |
No |
Cooling |
Forced |
| Housing |
Metal |
Weight |
40 kg |
Additional Information
| Type |
Metal Case | Digital Display |
