Product Details

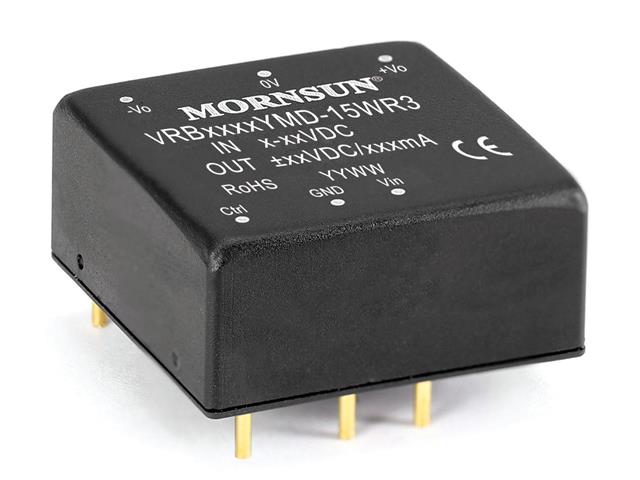

MORNSUN DC/DC Converter VI=12V (9-18V) VO=5V 3000mA Max 15W Wide 2:1 Single Output DIP 25.4x25.4x11.7mm
DC/DC Converter
Feature
- Wide 2:1 input voltage range
- High efficiency up to 91%
- I/O isolation test voltage 1.5k VDC
- Input under-voltage protection, output short-circuit, over-current, over-voltage protection
- Operating ambient temperature range: -40℃ to +105℃
- Meets CISPR32/EN55032 CLASS A, without extra components
- Industry standard pin-out
Downloads
Additional Information
| Device | Convertor |
| Type | DC/DC |
| Power | 15W |
| Input Voltage | 12V (9-18V) |
| Output | 5V 3000mA |
