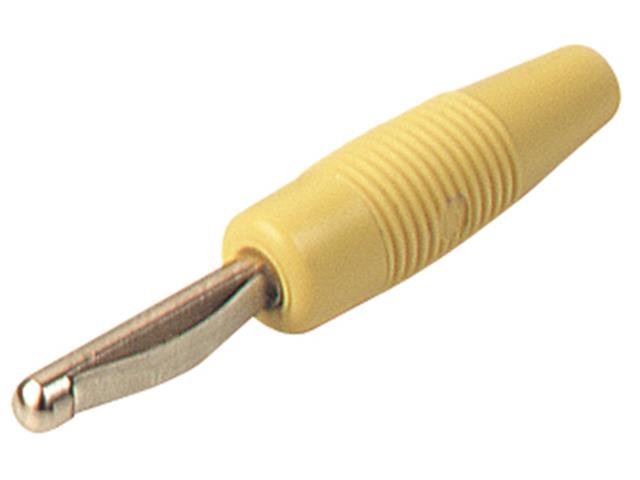

Banana Plug 4mm Nickel Plated Brass Contact 30A 30VAC / 60VDC CAT I
Banana Plug 4mm Nickel Plated Brass
Overview
Fully mating connector, shatter-proof, flexible insulated sleeve. The tapering sleeve end also serves as kinking protection for the lead. Solder connection up to maximum cable cross-section of 2.5 mm². Nickel-plated brass contact material.
Features
- Connection : Solder Connection
- Rated Voltage(1) : 30 VAC / 60 VDC
- Measurement Cat. acc. to IEC 61010 : CAT I
- Rated Current(1) (consider derating curve) : 30 A
- Material Plug : Brass, Nickel Plated
- Housing Material : PVC-P
- Temperature Range acc. To IEC61010(2) : -25 °C to +70 °C
- Standard : IEC 61010
- for normal environmental conditions -5°C to +40°C
Downloads
Additional Information
| Device | Plug |
| Type | Banana | Nickel Plated | Brass |
| Colour | Yellow |
| Size | 4mm |
