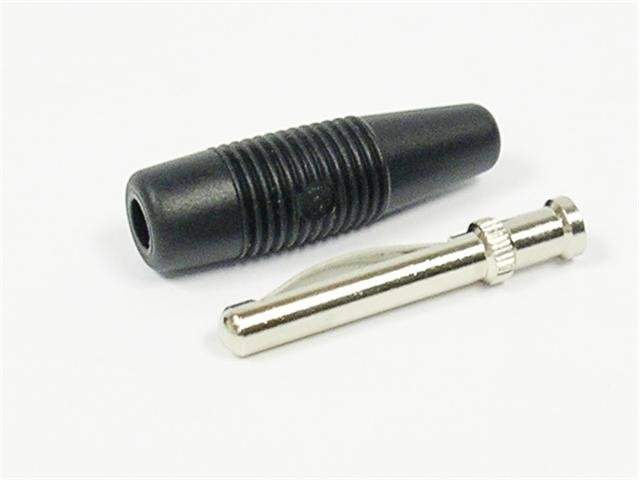

Banana Plug 4mm Nickel Plated Brass Contact 30A 30VAC / 60VDC CAT I Banana Plug 4mm Nickel Plated Brass Overview Fully mating connector, shatter-proof, flexible insulated sleeve. The tapering sleeve end also serves as kinking protection for the lead. Solder connection up to maximum cable cross-section of 2.5 mm². Nickel-plated brass contact material. Features Connection : Solder Connection Rated Voltage(1) : 30 VAC / 60 VDC Measurement Cat. acc. to IEC 61010 : CAT I Rated Current(1) (consider derating curve) : 30 A Material Plug : Brass, Nickel Plated Housing Material : PVC-P Temperature Range acc. To IEC61010(2) : -25 °C to +70 °C Standard : IEC 61010 for normal environmental conditions -5°C to +40°C Downloads Datasheet - VON30 Additional Information Device Plug Type Banana | Nickel Plated | Brass Colour Black Size 4mm
