Product Details

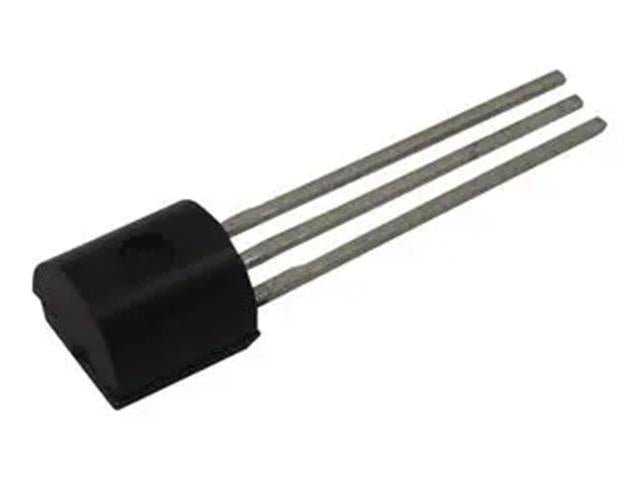

N MOSFET 30V 1,2 OHMS TO-92
N MOSFET 30V 1,2 OHMS TO-92
Specifications
|
FET Type
|
N-Channel
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
Drain to Source Voltage (Vdss)
|
30 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
640mA (Tj)
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
5V, 10V
|
|
Rds On (Max) @ Id, Vgs
|
1.2Ohm @ 1A, 10V
|
|
Vgs(th) (Max) @ Id
|
2.5V @ 1mA
|
|
Vgs (Max)
|
±30V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
190 pF @ 20 V
|
|
FET Feature
|
-
|
|
Power Dissipation (Max)
|
1W (Tc)
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
Mounting Type
|
Through Hole
|
|
Supplier Device Package
|
TO-92-3
|
Additional Information
| CatGroup | Transistor |
| Device | Transistor |
