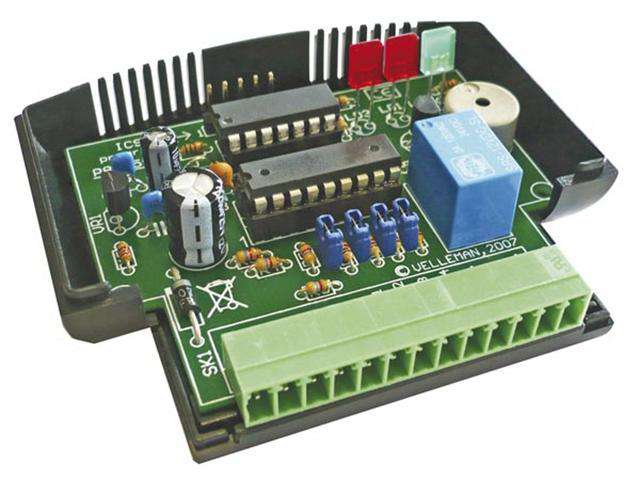

Mini PIC-PLC Application Module Kit
Overview
Unlimited applications, dependent on your programming skills. Create own custom application without making the hardware. All the buffered inputs and outputs are available. The module features on-board LED, a relay output and a buzzer. Produce your own Automation, Controller, car Application…etc.
Features
- 9 free programmable I/Os (4 in-, 5 outputs)
- PIC16F630 microcontroller from Microchip® on-board
- LED indication for power supply and relay output
- 1 free programmable LED indication
- On-board mini buzzer for audible signals
- On-board ICSP™ connector for programming
- PIC™ programmer supports PIC16F630
Specification
- Power supply: 12V DC (unregulated) / 100mA
- 4 inputs (voltage sensing inputs)
- Input signal voltage: 5 - 24VDC, @ 4K7
- 4 NPN transistor outputs (open-collector, sink outputs).:
- Transistor output current: max. 100mA each
- Direct 12V relay drive possible (no need for protection diode)
- 1 relay output with NO/NC contact (2A)
- MCU speed: fixed 4MHz internal oscillator
- Dimensions: 80 x70 x 25mm
