Product Details

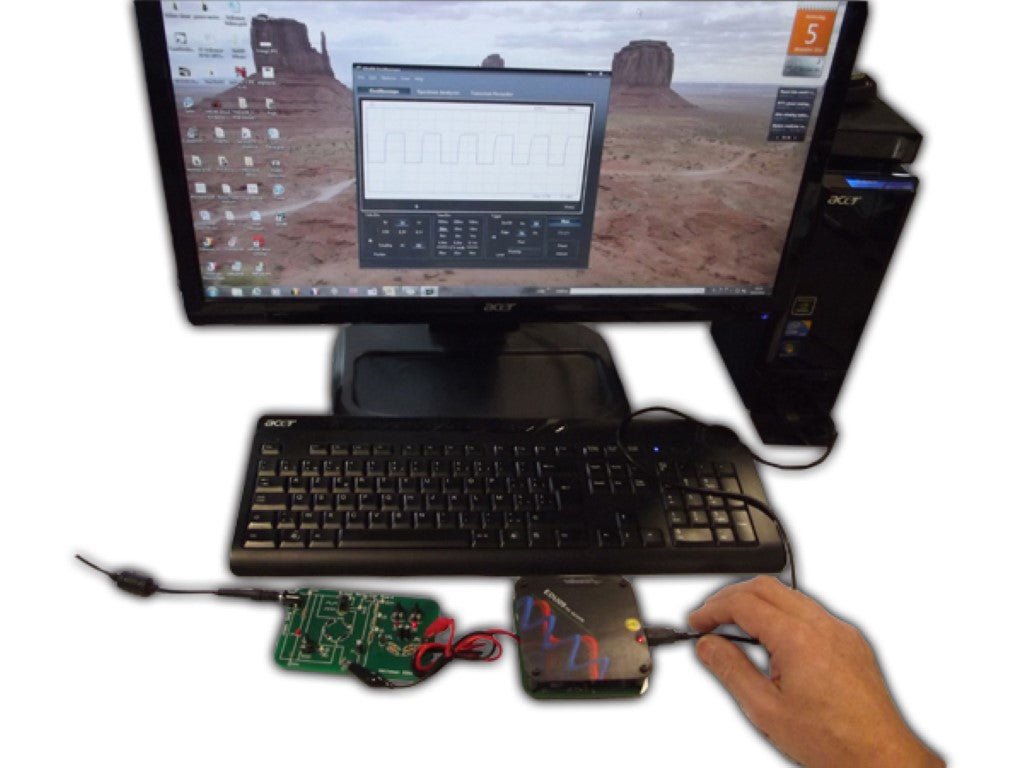

Oscilloscope Kit With PC display for measurements
Overview
Features
Specification
 Oscilloscope :
- Bandwidth: Dc To 200 Khz ± 3 Db
- Input Impedance: 100 Kohm / 20 Pf
- Maximum Input Voltage: 30 V (ac + Dc)
- Time Base: 10 Îœs To 500 Ms Per Division
- Input Range: 100 MV To 5 V/division
- Input Sensitivity: 3 MV Display Resolution
- Readouts: True Rms, Dbv, Dbm, P To P, Duty Cycle, Frequency…
- Record Length: 1k Samples
- Sampling Frequency: 62.5 Hz To 1.5 Mhz
- Sample History Function
- Auto Set-up Function
- Pre-trigger Function : On 0.1 Ms/div .. 500 Ms/div Ranges
- Persistence Options: Colour Graded, Variable And Infinite
- Frequency Range: 0 .. 150 Hz To 75 Khz
- Operating Principle: Fft (fast Fourier Transform)
- Fft Resolution: 512 Lines
- Timescale: 20 Ms/div To 2000 S/div
- Max. Recording Time: 9.4 H/screen
- Automatic Storage Of Data
- Record And Display Of Screens
- Automatic Recording For More Than 1 Year
- Max. Number Of Samples: 100/s
- Min. Number Of Samples: 1 Sample/20 S
- Markers For: Amplitude/voltage And Frequency/time
- Expert Or Basic Mode Selection In Software
- Input Coupling: Dc And Ac
- 8 Bit Resolution
- Storage Of Display And Data
- Power Supply Through Usb: +/- 200 Ma
- Uses Microsoft® Human Interface Device (hid) Driver, No External Driver Required
- Dimensions: 94 X 94 Mm / 3.7 X 3.7"
- IBM Compatible PC
- Windows® XP, Vista, 7, 8 *
- SVGA Display Card (min. 1024 X 768)
- Mouse
- Free USB Port 1.1 Or 2.0
