Product Details
| Siemens Hi Duty Size 2 Industrial Cradle Relay with Gold Flash Contacts and Ground Terminal Form 4C 9VDC (6-14VDC) 110 ohm Coil Res. 5A/250VAC/VDC Peak Switching PCB Mount |
- Multi purpose relay
- Highly reliable
- Great variety of contact arrangements and materials to meet specific applications
- Contacts for signal loads and currents up to 5 A
- DC coil, operating voltage 1.5VDC to 125VDC; AC, latching and non-latching coils on request
- Sockets for easy and quick mounting of relays

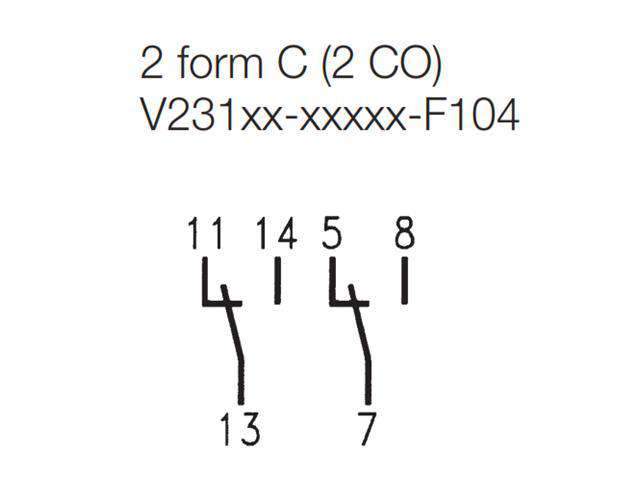

| Contact Form | Form 2C |
| Termination | PCB |
| Coil Rated Voltage | 9V |
| AC/DC Voltage | DC |
| Max. Switching Current | 5A |
| Coil Power | 736mW Power |
| Coil Resistance | 110Ω |
| Contact Material | Silver, Gold-flashed |
