Product Details
2 Pole Telecom PCB Relay • Form 2C (DPDT) • VCoil= 12V DC • IMax Switching= 5A • RCoil= 600Ω • PCB • Non Latching

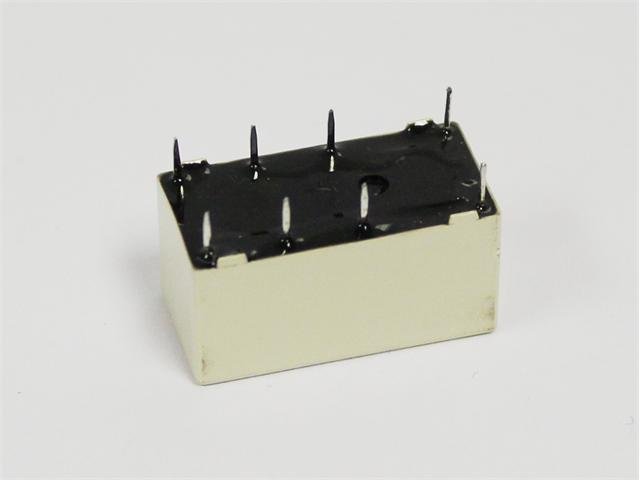

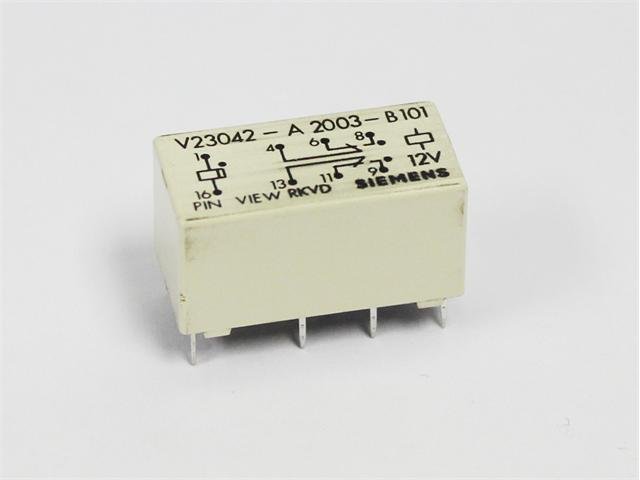

Telecom PCB Relay
Features
- 5A switching capacity.
- Meets FCC Part 68 isolation.
- Temperature compensated over operating range.
- No magnetic interference between adjacent relays.
- 2 Form C contact arrangement.

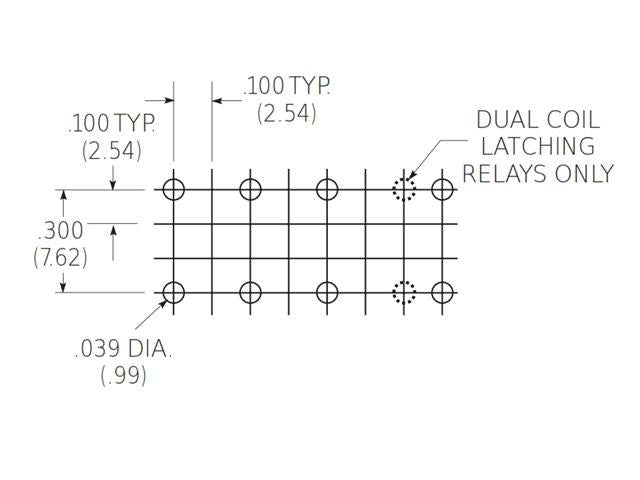

- Standard 0.1” x 0.3” grid spacing in a DIP configuration.
- Standard or sensitive DC coils through 48 volts.
- Well suited for audio communications circuits, logic and process control, vending machines and office automation applications.
- Immersion cleanable, plastic sealed case.
Downloads
Additional Information
| Device | Relay |
| Type | Telecom | PCB | Non Latching |
| Highlights | Non Latching |

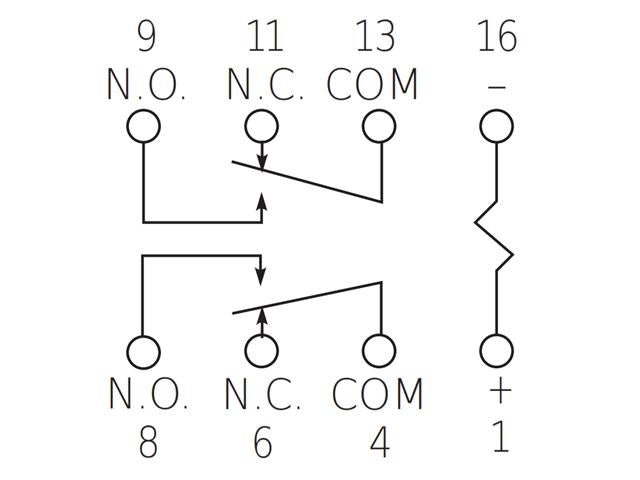

| Contact Form | Form 2C (DPDT) |
| Termination | PCB |
| Coil Rated Voltage | 12V |
| AC/DC Voltage | DC |
| Max. Switching Current | 5A |
| Coil Power | 240mW Power |
| Coil Resistance | 600Ω |
| Contact Material | Silver, Gold plated |
| Pin Layout | DPST |
| No. of Poles | 2 Pole(s) |
