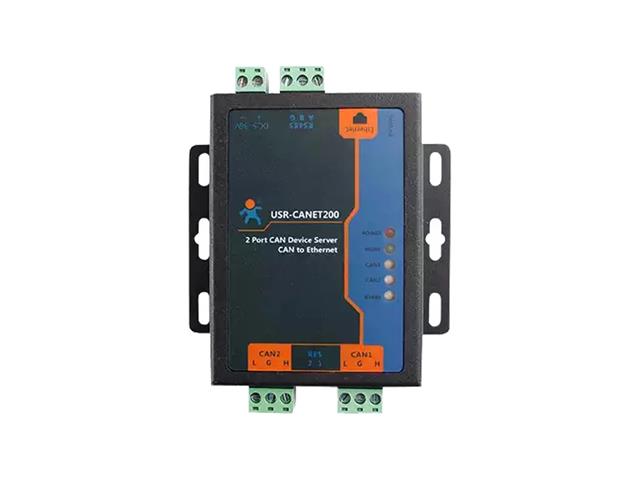

Industrial CAN to Ethernet Converter
Overview
Features
- Industrial solution, working temp. -40~85℃
- two CAN port and one Ethernet port,TCP/IP protocol,extend the CAN network
- Transfers among three networks: CAN to Ethernet,CAN to RS485, Ethernet to RS485
- Supports dual sockets to connect to two servers,one socket to control,another socket to manage
- Protection:Power interface anti-reverse, CAN interface surge and digital isolation protection
- Hardware and software watchdog, connects stable

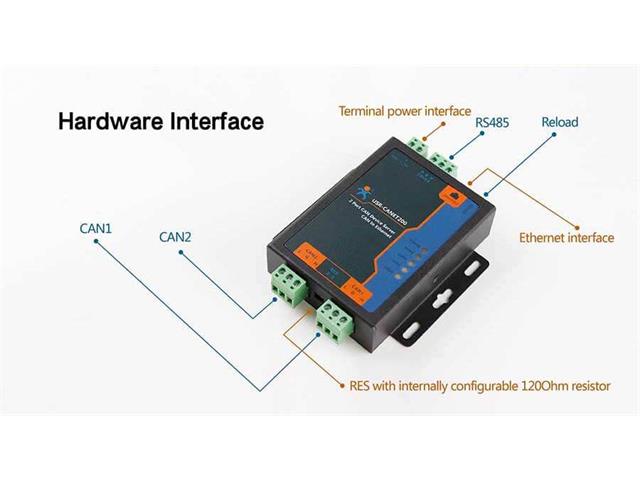

Basic Function of CAN to Ethernet converters USR-CANET200
- Bidirectional transmision among CAN1 interface, CAN2 interface, RS485 interface and Ethernet interface.
- Support CAN relaying function(Bidirectional transmission between CAN1 and CAN2) and CAN to RS485 function.
Specifications
| Hardware parameter | ||
|
Working voltage |
DC 5~36V |
|
|
Working current |
Average 26mA@36V Average 56mA@12V Average 124mA@5V |
|
|
Power supply protection |
Power supply surge: Level three. Group pulse: Level three. |
|
|
Ethernet interface specification |
RJ45, 10/100Mbps, support Auto-MDI/MDIX. |
|
|
Ethernet interface protection |
1.5KV electromagnetic isolation |
|
|
Serial port |
RS485 |
|
|
Serial port baud rate |
600~115.2K(bps) |
|
|
CAN baud rate |
10K~1M(bps) |
|
|
CAN work mode |
Basic, loopback |
|
|
CAN protection |
Power supply isolation, signal isolation |
|
| Software parameter | ||
|
Network protocol |
IPV4, TCP/UDP |
|
|
How to get IP |
Static IP, DHCP |
|
|
Configuration method |
Web Server, serial/network AT command |
|
|
TCP Server connection |
Support at most four TCP Client connections; serial server only support one Client connection |
|
|
CAN receiving capability |
8000 frames every second(Every way) |
|
|
CAN transmitting capability |
8000 frames every second(Every way) |
|
|
Network cache |
Transmitting: 16K bytes; receiving: 16K bytes |
|
|
CAN cache |
Transmitting: two hundred complete data packets(Every way); receiving: two hundred complete data packets(Every way) |
|
|
Serial cache |
Transmitting: 2K bytes; receiving: 2K bytes |
|
|
Flow control |
Don’t support |
|
|
Heartbeat packet |
CAN: Support user editable heartbeat packet(CAN data packet that conforms to transparent transmission protocol). Serial port: Support user editable heartbeat packet |
|
|
Identity packet |
CAN: Support user editable, MAC, USR Cloud identity packet. Serial port: Support user editable, MAC, USR Cloud identity packet |
|
|
Average transmission delay |
<20 ms |
|
| Other parameter | ||
|
Working temperature |
-40~85℃(Industrial level) |
|
|
Storage temperature |
-40~105℃ |
|
|
Dimensions |
96.5*94*25mm(L*W*H) |
|
|
Working humidity |
5~95%RH |
|
|
Storage humidity |
5~95%RH |
|
Downloads
Additional Information
| Device | Converter |
| Type | Industrial | CAN to Ethernet |
