Product Details

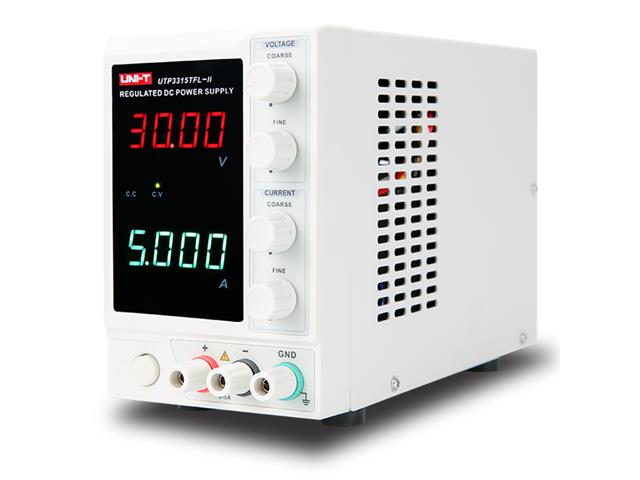

Switch Mode DC Power Supply, Single Channel, O/P Voltage: 0~30V, O/P Current 0~5A, Ripple & Noise:≤2mVrms , O/P RES:CV: 10mV (typical), CC: 1mA (typical) , O/P Power:150W, Reliability:MTBF(e): ≥2000hrs, 105x165x249mm, 4kg
Switch Mode DC Power Supply
Overview
UTP3000TFL-II series single-channel linear DC power supplies are economical benchtop tools for DIY electronics hobbyists, electronics manufacturing and testing, and other applications.
Specifications
|
Model |
UTP3315TFL-II |
|
|
Output voltage |
0~30V |
|
|
Output current |
0~5A |
|
|
Output power |
150W |
|
|
Load regulation |
CV≤0.01%+5mV, CC≤0.1%+10mA |
|
|
Accuracy (25℃±5℃) |
Voltage |
＜0.5%+20mV |
|
Current |
＜0.5%+10mA |
|
|
Ripple and noise |
≤2mVrms |
|
|
Output regulation resolution |
CV: 10mV (typical), CC: 1mA (typical) |
|
|
Reliability |
MTBF(e): ≥2000hrs |
|
|
Display mode |
LED voltage and current dual display |
|
|
Feature |
Auto conversion of constant voltage and current with current limit protection |
|
|
General Characteristics |
||
|
Power |
Input voltage: 110V/220V±5% AC; frequency: 50Hz/60Hz |
|
|
Product color |
White and grey |
|
|
Product net weight |
3kg (UTP3313TFL-II); 4kg (UTP3315TFL-II) |
|
|
Product size |
105mm x 165mm x 249mm |
|
|
Standard accessories |
Power cord, output cables |
|
Downloads
Additional Information
| Device | Power Supply |
| Type | Switch Mode | DC |
