Product Details

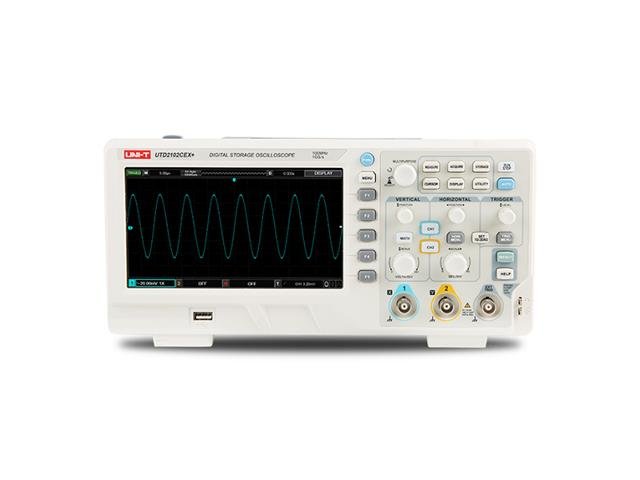

Digital Storage Oscilloscope 2CH 100MHZ 7INCH TFT Colour Display 1G Sa/s, 1mV/div~20V/divG, Memory Depth 64kpts, USB Host, USB Device, Pass/Fail, (306×138× 124mm) 2.5Kg
Digital Storage Oscilloscope
Overview
The UTD2000CEX+ Series digital storage oscilloscope is an entry-level
bench solution that meets the key requirements of basic measurement.
The simple and clear front panel is designed for easy operation.
The UTD2000CEX+ Series has 50MHz /100MHz/200MHz bandwidth,
real-time sampling rate of 1GSa/ s, dual channel and other performance
output, and storage depth of 64kpts. With extensive application scenarios,
this model is suitable for communication, semiconductor, computer,
instrument,industrial electronics, consumer electronics, automotive
electronics, on-site maintenance, R & D / education and more.
Features
- 50/100/200MHz bandwidth
- 2 channels, low noise floor, wide vertical range: 1mV/div~20V/div
- Memory depth: 64kpts
- System software upgrade via USB drive
- 7 inch TFT LCD
- Supports plug-and-play USB storage device; communication with and remote control of computer through the USB device
Downloads
Additional Information
| Device | Oscilloscope |
| Type | Digital | Storage |
