Product Details
Digital Battery Tester 12V/24V 3~250Ah {Lead Acid Battery, AGM Flat Plate Battery, AGM Spiral Battery, Gel Battery, EFB Battery}

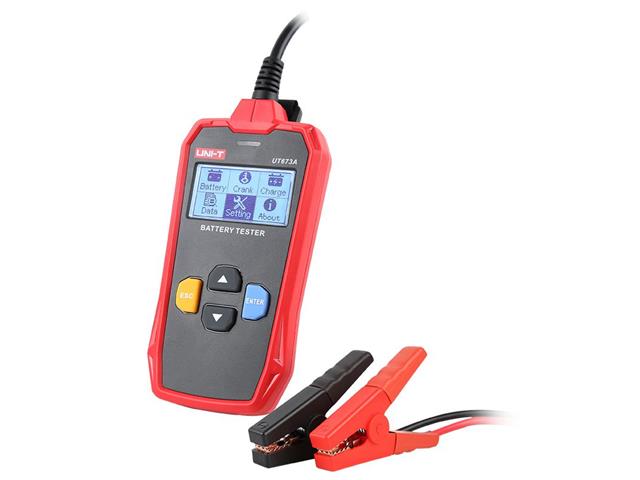

Digital Battery Tester
Overview
UT673A battery tester can be used to analyze the battery health of automobile batteries, suitable
for battery capacities from 3 to 250Ah. This CE certified tester can rapidly and accurately detect common
battery faults.
Features
- 12V cranking lead acid battery test
- 12/24V charging or cranking system test
- Display battery capacity, voltage, resistance and life
- Four-termina Kelvin test
- 10 types of battery standards
- Language option (Chinese/English)
- Test without battery disassembly
- LED color indication for test result (UT673A)
- Print on-line and real-time test reports (UT675A)
- USB data transfer (UT675A)
Specifications
| Specifications | Range |
| Certificates | CE, FCC, RoHS |
| 12V battery test | 7~16V DC |
| 12V/24V cranking system test | 7~30V DC |
| 12V/24V charging system test | 7~30V DC |
| Battery type | Ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, GEL battery, EFB battery |
| Battery capacity | 3~250Ah |
| Battery standard and range | CCA: 40~2000; BCI: 40~2000; CA: 40~2000; MCA: 40~2000; JIS: 26A17~245H52; DIN: 40~1400; IEC: 40~1400; EN: 40~2000; SAE: 40~2000; AH: 3~250AH |
| Over voltage protection | |
| Reverse connection protection | |
| A prompt of poor contact | |
| Battery status display | |
| Battery life display | |
| Battery capacity display | |
| Battery internal resistance display | |
| USB communication | |
| Printing function | |
| General Characteristics | |
| Power | None, powered by external source |
| Display | 128*64 black and white lattice |
| Product net weight | 264g |
| Product size | UT673A: 76mm x 22mm x 142mm |
Downloads
Additional Information
| Device | Tester |
| Type | Digital | Battery |
