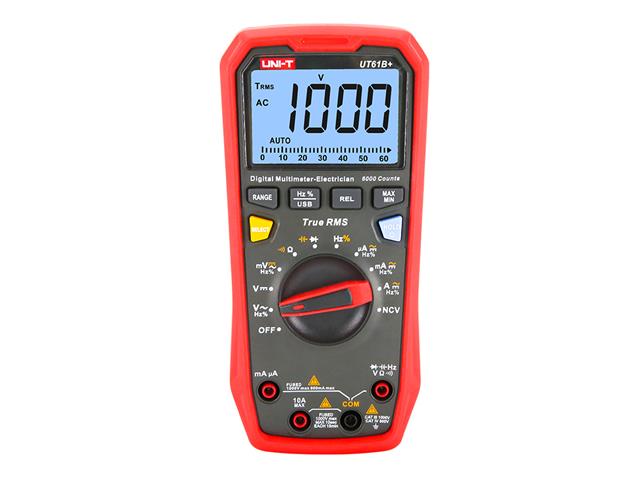

Digital Multimeter 1000V 10A AC/DC , Res, Cap, Freq, Display Count 6000, True RMS, 40Hz~500Hz, Diode~Continuity Test, NCV, Data Hold/Backlight, CAT III 1000V, CAT IV 600V
Digital Multimeter 1000V
Features
- True RMS
- Data hold/backlight
- Max/Min/Relative mode
- USB communication
- Diode/continuity test
- NCV (audible/visual alarm)
- LoZ ACV (UT61D+/UT161D)
- LPF ACV/ACV+DCV/Transistor hFE (UT61E+/161E)
- Peak Hold (UT61D+/61E+/161D/161E)
Specifications
| Safety ratings |
CAT III 1000V/CAT IV 600V |
| AC voltage (V) |
1000V |
±(1%＋3) |
| DC voltage (V) |
1000V |
±(0.5%＋3) |
| AC current (A) |
10A |
±(1.2%＋5) |
| DC current (A) |
10A |
±(1%＋2) |
| Resistance (Ω) |
60MΩ |
±(1%＋2) |
| Capacitance (F) |
60mF |
±(3%＋5) |
| Frequency (Hz) |
10MHz |
±(0.1%＋4) |
| Duty cycle (%) |
0.1%~99.9% |
±(2%＋5) |
| Display count |
|
6000 |
| Bandwidth (Hz) |
|
40Hz~500Hz |
| Analog bar |
|
31 |
| General Characteristics |
| Power |
1.5V battery (R03) x 4 |
| Product net weight |
350g |
| Product size |
190mm x 90mm x 50mm |
| Standard accessories |
Battery, gold plated test leads, USB cable, English manual |
Downloads
Additional Information
| Device |
Multimeter |
| Type |
Digital |
