Insulation Resistance Tester 600V AC/DC Res Test Voltage 500/1000V/2500V, Auto Range Auto PWR OFF, Low Batt Indication, Data Storage18, Comparison, DAR, PI, USB Interface, LCD Backlight, Analogue Bar GRAPH30, Overload Indication, Timer

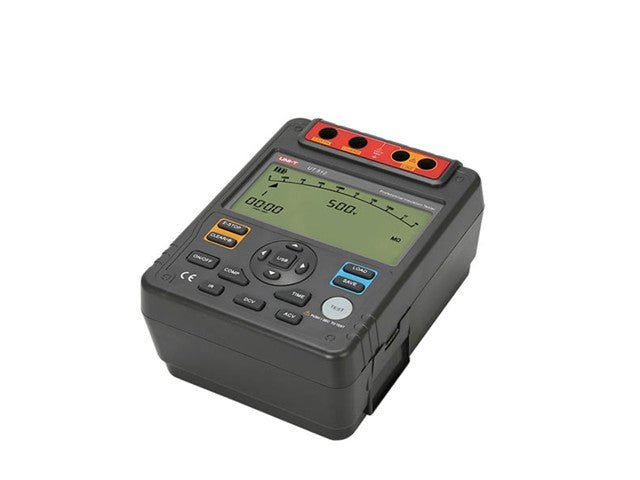

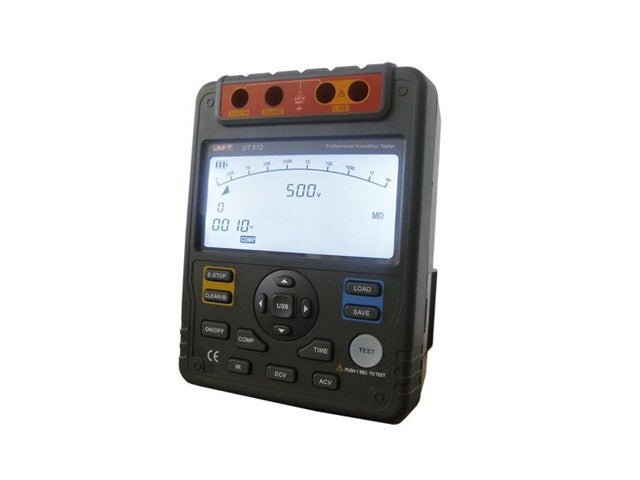

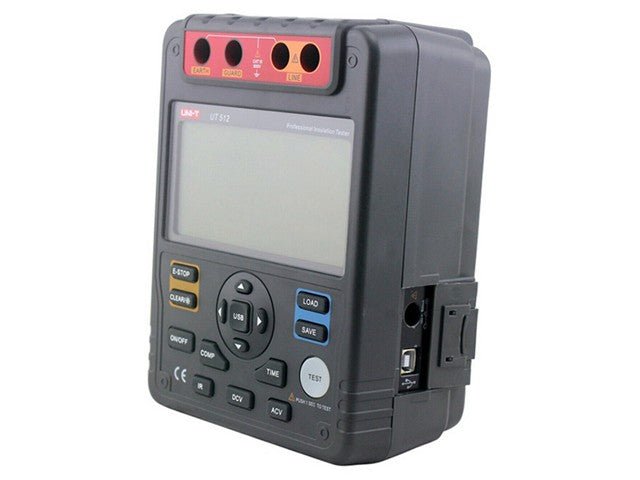

Insulation Resistance Tester
Specifications
| Display count |
9999 |
| Measurement range and best precision |
| Insulation resistance (Ω) |
Voltage |
Range |
Accuracy |
Current |
| 500 V |
0.5 MΩ - 5.0 GΩ |
100 KΩ - 100 MΩ ±(3%+5) |
1 mA - 2 mA @(500 KΩ) |
| 1000 V |
2 MΩ - 10 GΩ |
100 MΩ - 10 GΩ ±(5%+5) |
1 mA - 2 mA @(1 MΩ) |
| 1500 V |
5 MΩ - 20 GΩ |
10 GΩ - 100 GΩ ±(10%+5) |
1 mA - 2 mA @(1.5 MΩ) |
| 2500 V |
10 MΩ - 100 GΩ |
|
1 mA - 2 mA @(2.5 MΩ) |
| DC voltage |
600 V |
|
±(2%+5) |
|
| AC voltage |
600 V |
|
<100 V ±(2%+8)
≥100 V ±(2%+5) |
|
|
| Resolution |
1 V |
| Auto Range |
Yes
|
| Other functionalities |
Backlight, Auto off, Timer, Data-hold (18 slots), USB interface |
| Power source |
8 x 1.5V battery (LR14) |
| Dimensions |
202 x 155 x 94 mm |
| Weight |
2 kg |
Downloads
Additional Information
| Device |
Tester |
| Type |
Insulation | Resistance |
