Product Details
Phase Sequence & Motor Rotation Indicator 40V~690V 15Hz~400Hz (123x71x29mm) 160g
Phase Sequence & Motor Rotation Indicator
Overview

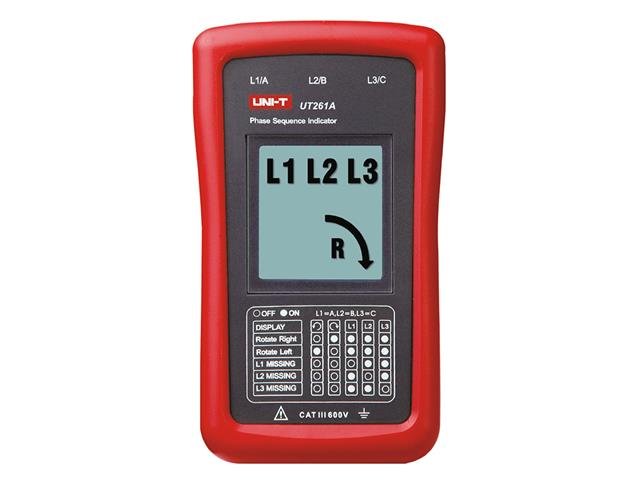

UT261A Phase Sequence and Motor Rotation Indicator
UT261 series is used for determining 3-phase power phase sequence, missing phase indication, and motor phase rotation (UT261B). UT261A and UT261B can measure AC voltage of 40~700V and 90~600V respectively. These devices can operate in frequency range of 15~400Hz. UT261 are durable devices which can withstand impact from 2 meter' s height. Test leads with protective tubing are included in optional accessories.
Specifications
| AC voltage (V) | 40V~690V | √ |
| Frequency (Hz) | 15Hz~400Hz | √ |
| Working current (A) | ＜1mA | |
| Features | ||
| Phase sequence indication | LCD | |
| Missing phase indication | LCD | |
| General Characterisitics | ||
| Power | No battery required | |
| Product color | Red and grey | |
| Product net weight | 160g | |
| Product size | 123mm x 71mm x 29mm | |
| Standard accessories | Battery, test lead with alligator clip x 3 | |
| Standard individual packing | Gift box, English manual, carrying bag | |
| Standard quantity per carton | 20pcs | |
| Standard carton measurement | 450mm x 325mm x 340mm | |
| Standard carton gross weight | 9.8kg | |
Downloads
Additional Information
| Device | Indicator |
| Type | Phase Sequence | Motor Rotation |
