Product Details
Digital Fork Meter 750VAC/1000VDC 200AC/DC, Resistance:60m, Capacitor:60mF, Display Count 6000, Auto Range, True RMS, Diode, Data Hold, NCV, Zero Mode, Auto Power Off, LCD Backlight, Continuity Buzzer, Low Battery Indication, Input Protection, Input Imped

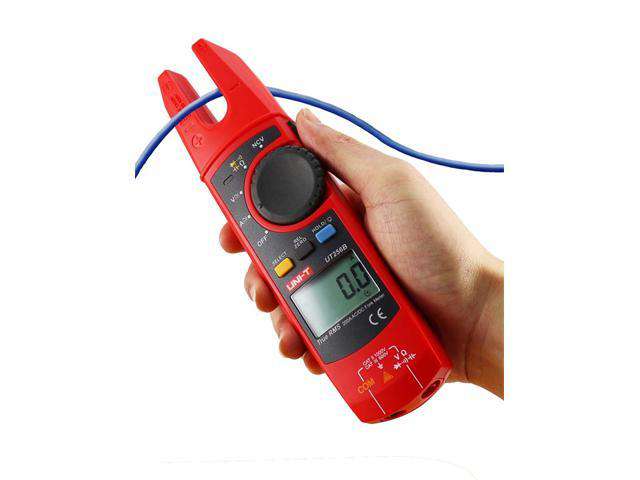

Digital Fork Meter
Features
Functions
- Display count 6000
- Autorange
- TRMS
- Diode test
- NCV
- Data hold
- Zero mode
- Relative mode
- LCD backlight
- Auto power off
- Continuity buzzer
- Low battery indication
- Input protection
- Input impedance for DCV >=10MΩ
General Characteristics
- Power AAA : 1.5V x2
- LCD Size : 36.5x24mm
- Weight : 163.7g
- Size : 210x53x35mm
- Accessory : batteries, manual, test leads, carrying bag
Specifications
Range : Best Accuracy
- AC Current : 200A : ±(2.5%+5)
- DC Current : 200A : ±(2.5%+5)
- AC Voltage : 6V/60V/600V/750V : ±(1.2%+3)
- DC Voltage : 600mV/6V/60V/600V/1000V : ±(0.8%+3)
- Resistance : 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ : ±(1.0%+2)
- Capacitance : 60nF/600nF/6uF/60uF/600uF/6mF/60mF : ±(4%+20)
Additional Information
| Device | Meter |
| Type | Digital | Fork |
