Mini Clamp Digital Meter 600VAC/DC 200A AC/DC Resistance 10Hz~60KHz Freq 200Ohm~ 20m Cap 2nF~20mF Temp -40~1000deg + that Hold True RMS

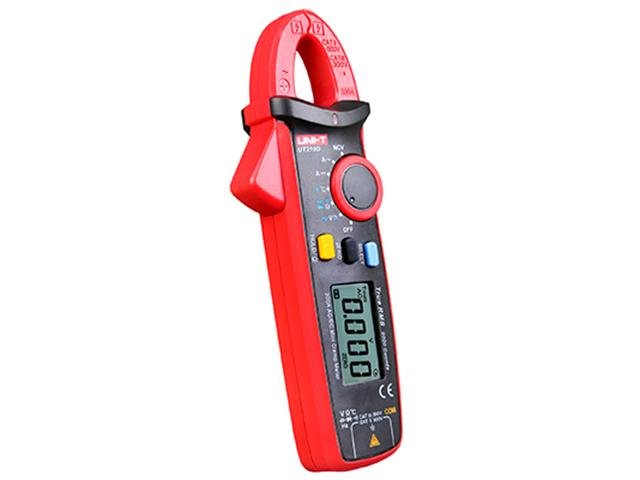

Mini Clamp Digital Meter
Features
- Ergonomic and lightweight
- Auto range, 2~3 times/s sampling rate
- LCD backlight, data hold
- Auto power off, low battery indication
Specifications
| Â |
Range |
UT210D |
| AC current (A) |
200A |
±(2.5%+8) |
| 100A |
 |
| DC current (A) |
200A |
±(2%+3) |
| 100A |
 |
| AC voltage (V) |
600V |
±(1%+3) |
| DC voltage (V) |
600V |
±(0.7%+3) |
| Resistance (Ω) |
20MΩ |
±(1%+2) |
| Frequency (Hz) |
60kHz |
±(0.1%+4) |
| Capacitance (F) |
20mF |
±(4%+5) |
| Temperature |
-40~1000℃ |
±(1%+3) |
| -40~1832℉ |
±(1.5%+5) |
| Features |
| Display count |
 |
2000 |
| Continuity buzzer |
 |
Yes |
| Auto range |
 |
Yes |
| Jaw opening |
 |
17mm |
| Diode test |
Around 3.0V |
Yes |
| General Characteristics |
| Power |
1.5V battery (R03) x 2 |
| Display |
39.3mm x 26.5mm |
| Product color |
Red and grey |
| Product net weight |
170g |
| Product size |
175mm x 60mm x 33.5mm |
| Standard accessories |
Batteries, test leads, point contact temperature probe |
Downloads
Additional Information
| Device |
Digital Meter |
| Type |
Mini | Clamp |
