Product Details

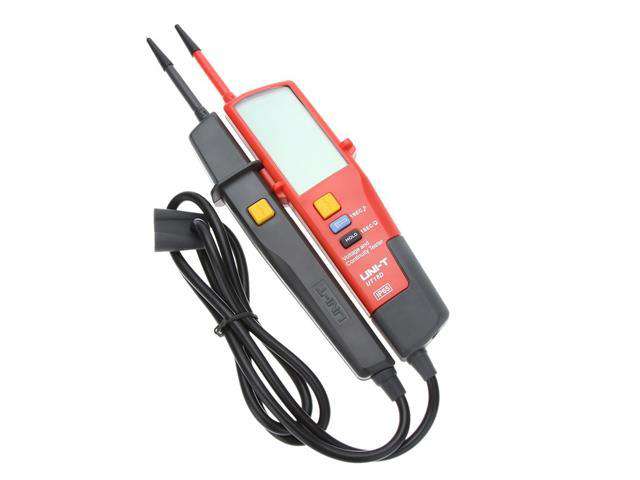

Voltage & Continuity Tester
Overview
Features
- IP65
- Auto Range : All Range
- Exceed Voltage : Voltage Range:713V~788V
- Auto Standby : Standby Current <10uA
- Silent Mode : All Range
- Work Light : All Range
- Low Battery Indication : Voltage Range:2.2V~2.4V
- LCD Backlight : All Range
- LCD Display (Voltage+frequency) : 6V~ 690V (40Hz~400Hz) ±(1.5%+5)
General Characteristic
- Power : 1.5V Batteries(R03) × 2
- LCD Size : 73.5 x 35.5mm
- Product Color : Red and Grey
- Product Net Weight : 280g
- Product Size : 272mm x 85mm x 31 mm
- Standard Accessories : Batteries
- Standard Individual Packing Blister, English Manual
Specification
Range - Best Accuracy
LED AC/DC Voltage Indication (V)
- 12V : 8V±2V
- 24V : 18V±2V
- 50V : 38V±4V
- 120V : 92V±6V
- 230V : 174V±8V
- 400V : 320V±10V
- 690V : 550V±15V
Phase Rotation Test
- Operating Voltage: 100V~690V
- Frequency: 50Hz~ 600Hz
Single Lead(L2)Voltage Detection
- Operating Voltage:100V~690V
- Frequency: 50Hz~ 400Hz
Continuity Test
- Resistance : 0~100KO
- Beeper and LED light Indicator
- RCD Test : Operating Voltage:230V(50Hz~400Hz)
- Polarity Detection : Positive & Negative
- Self-inspection : All LED or LCD indicator
