Product Details

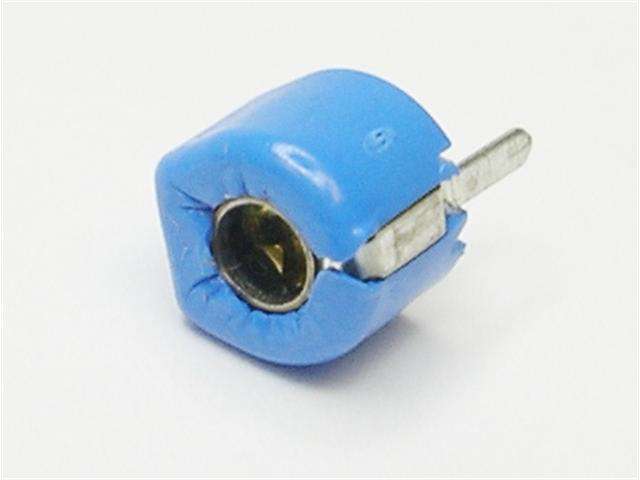

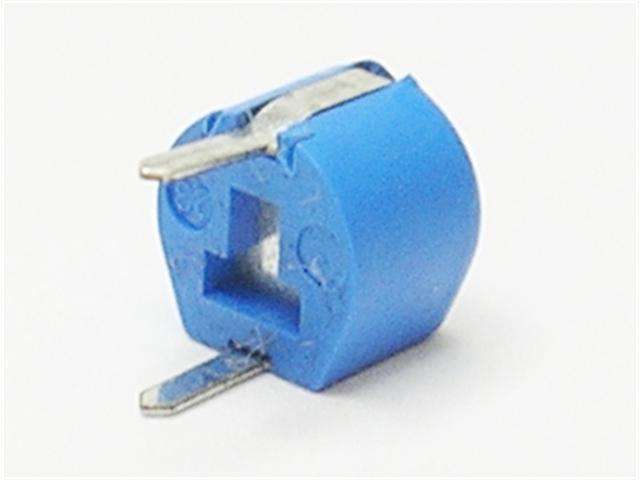

Trimmer Chip Capacitor Blue Stator/Case • PCB • 1.5pF - 5pF • 100V
Overview
Features
Specification
Â
- C min. (max.) (pF) : 1.5
- C max.(pF) : 5.0 +50/-0%
- TC : NP0±200ppm/°C
- Q : 500min. at 1MHz, Cmax.
- Rated Voltage : 100Vdc
- Withstanding Voltage : 220Vdc
- Stator/Case Color : Blue
| Dielectric | Ceramic |
| Capacitance Range | 1.5pF to 5pF |
| Rated Voltage | 100V |
| Termination | PCB |
