Product Details
9VDC Digital TV Link with 39.7kHz Input Signal Frequency and 7mHz Output Frequency
Overview
 9VDC Digital TV Link with 39.7kHz Input Signal Frequency and 7mHz Output Frequency
Features
Â

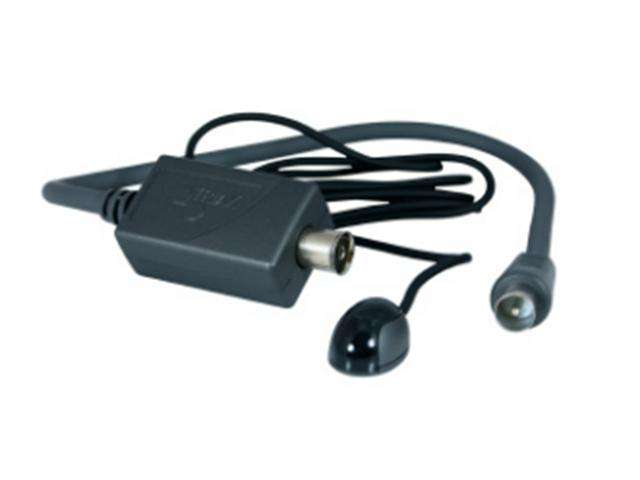

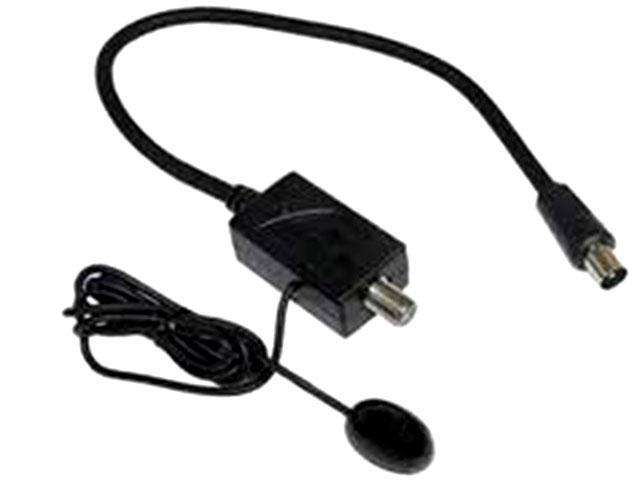

- Triax compact magic eye (as supplied with triax tri link kit)

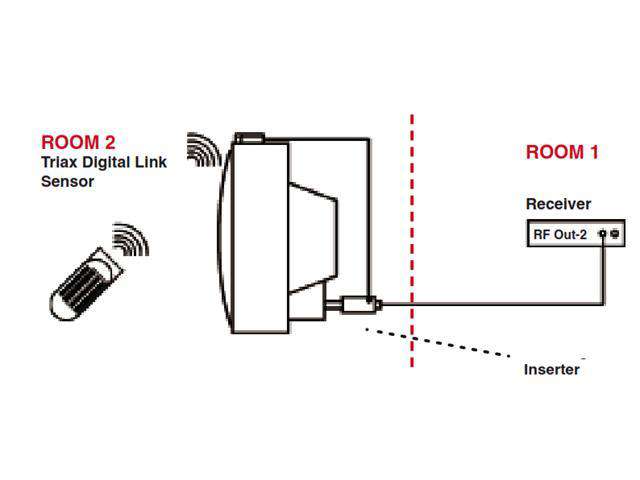

- Allows Control over HDPVR Decoder from Another Location
- Does Rquire Coax Cable from Box to Second Location
- Made by Triax a Well Know Satellite Brand
- Conforms to Xtraveiw Set-Top Box Specification Requirements
- Designed for Use with Plasma/LCD/LED Tv Sets
- Compact design ideal for LCD and plasma TV’s
- Competitive pricing
- Adhesive base for flexible installation
- Easy to install
- Individually bagged
Specification
Â
- Input Signal frequency : 37.9 kHz Carrier (Infra Red system)
- Output Signal Frequency : On-Off Keyed 7MHz Carrier
- Line Power Requirement : 9V DC @ 10mA
- Infra Red Sensor Lead : 0.9m
- Output Connector : IEC Male
- Input Connector : IEC Female
- Operating Temperature : 0 to +40°C
- Fly Lead on Output : No
