Product Details

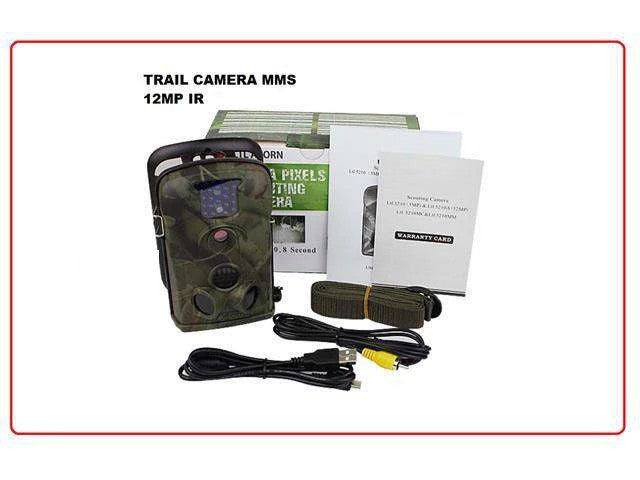

12MP IR Trail Camera • LCD Screen • IP54 • TV Out • MMS • SD Card ~16GB
Overview

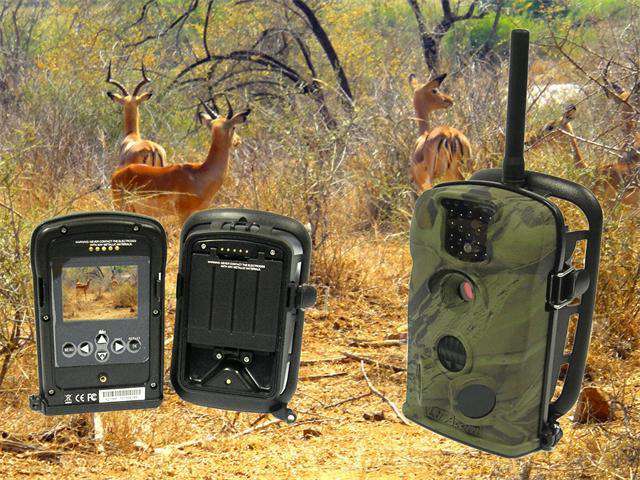

This second generation scouting camera is bundled with the MMS-module (Multimedia Messaging Service) battery box. With its highly sensitive Passive Infra-Red (PIR) sensor, the camera detects the sudden change of ambient temperature caused by moving game in a region of interest (ROI), triggers to take pictures/videos, and sends the images via GSM network to the user’s cell phone or email account.
Features
- In “Cam + Video” mode, camera takes both pictures and video at every trigger event
- IR night vision LEDs range of 20m
- Unique side Prep Sensor design provides wider sensing angle and enhances camera’s response speed
- Serial Number setting enables you to code locations in the photos. This helps multi-camera users identify the location when reviewing the photos
- Date, time, temperature and moon phase can be stamped in the pictures
- Lockable and password protected
- Advanced Remote Cellular Technology transmits images to your cell phone and email account constantly at low battery consumption and shorter transmission time
- All MMS pictures saved in SD card as well as the original ones
- Program up to 3 Numbers to send MMS
- Auto Power off
Specification
- Image Sensor
- Image Sensor : 1/4’Color CMOS Sensor
- Resolution : 640x480 Pixels (300k Pixels)
- IRLens : f:6mm, F2.0 (3.6mm lens optional)
- Viewing Angle : 60° (3.6mm lens is 90°)
- Minimum Illumination : 0.5Lux @ F2.0
- Video/Image Setting
- Video Compression : MJPEG
- Video Frame Rate : 15fps(VGA), 30fps(QVGA)
- Resolution : 640x480(VGA), 320x240(QVGA)
- Flip Mirror Images : Vertical / Horizontal
- Light Frequency : 50Hz, 60Hz or Outdoor
- Video Parameters : Brightness, Contrast
- Audio talk-back : Built-in Mic
- Communication
- System Interface : 10Base-T/lOOBase-TX Ethernet Port
- Supported Protocol : TCP/IP, DHCP, SMTP, HTTP, DDNS, UPNP, PPPoE, FTP, DNS, UDP, GPRS
- Wireless LAN : Support Wireless Network (Wi-Fi/802.11/b/g)
- WEP Encryption : Disable / 64 bit / 128 bit
- WPA/WPA2 Encryption : TKIP /AES
- Physical / Environment
- Power Supply : 5VDC/2A Extemal Power Adapter
- Power Consumption : 5W (Max.)
- Operating Temperature : 0~55°C
- Operating Humidity :20%-85% non-condensing
- PC System Requirements
- CPU : 2.0GHZ or above
- Memory Size : 256MB or above
- Display Card : 64M or above memory
- Supported OS : Microsoft Windows 98/ME/2000/XP/Vista/7
- Browser : IE6.0, IE7.0, IE8.0, Firefox, Safari, Google Chrome
- Certification CE, FCC, RoHS
