Product Details
TP-LINK AV1000 Gigabit Powerline Starter Kit, Gigabit Ethernet Port, Pair/Reset Button, Max:2.7W, 300 Meters Over Electrical Circuit, Windows 2000/XP/2003/Vista, Windows 7/8/8.1, Mac/Linux

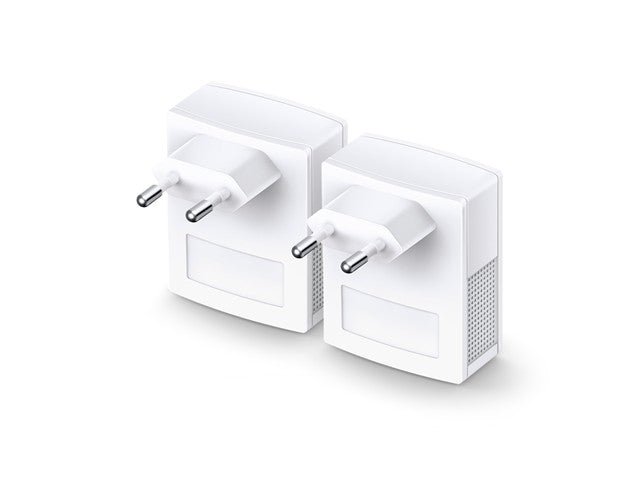

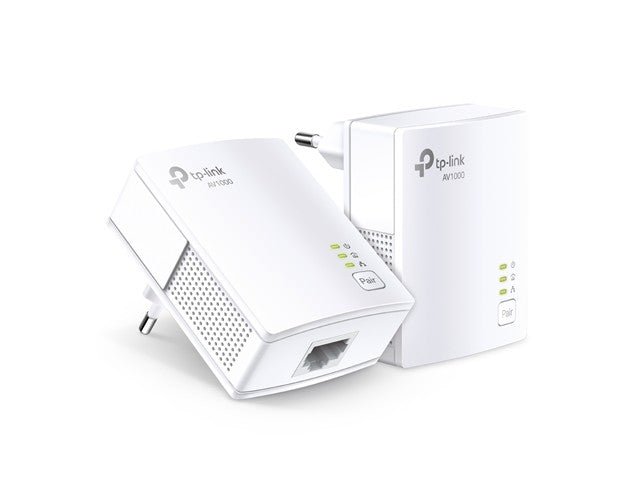

AV1000 Gigabit Powerline Starter Kit
Overview

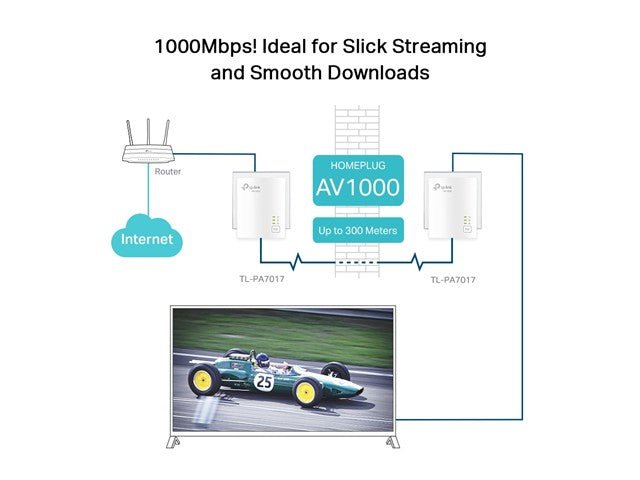

- HomePlug AV2 Standard - high-speed data transfer rates of up to 1000 Mbps, supporting all your online needs

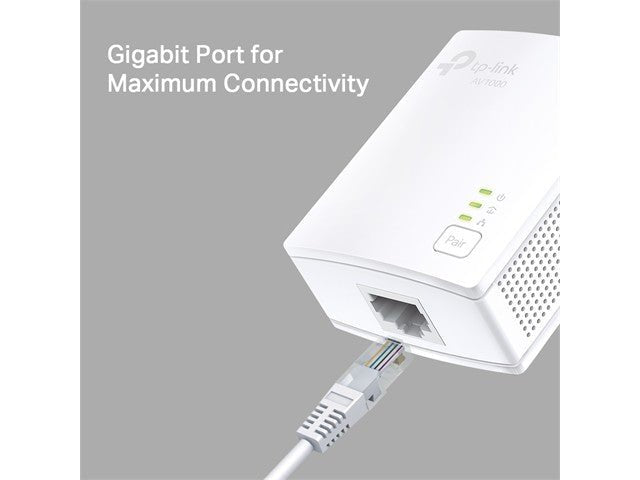

- Gigabit port - provides secure wired networks for desktops, smart TVs or games consoles

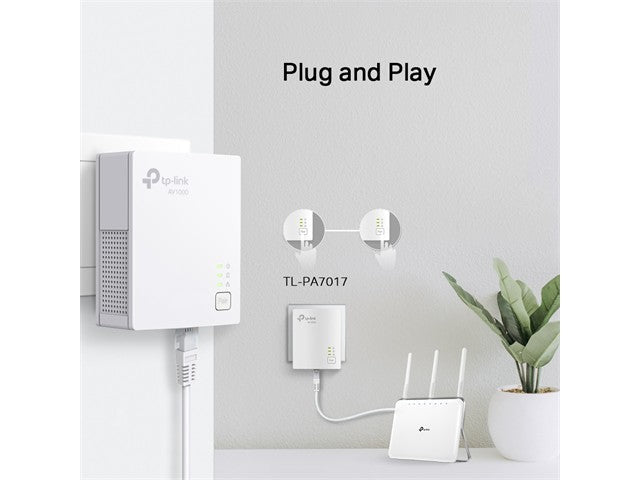

- Plug and play - allows setup of your powerline network in minutes, so you can enjoy fast, seamless wired connections right away
- Patented Power - Saving Mode - automatically reduces power consumption by up to 85%
Specifications
| Standards and Protocols | HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
|---|---|
| Plug Type | EU, UK, US |
| Interface | Gigabit Ethernet Port |
| Button | Pair/Reset button |
| Max. Power Consumption | Maximum: 2.7W (220V/50Hz) Typical: 2.3W (220V/50Hz) Standby: 0.5W (220V/50Hz) |
| LED | PWR, PLC, ETH |
| Dimensions ( W x D x H ) | 2.6*2.0*1.1 in (65*52*28.5mm) |
| Range | 300 Meters over electrical circuit |
| Modulation Technology | OFDM (PLC) |
|---|---|
| Encryption | Powerline Security: 128-bit AES |
| Certification | CE, RoHS |
|---|---|
| Package Content | Powerline Ethernet Adapter 6.5 ft. (2 m) Ethernet cable (RJ45) Quick Installation Guide |
| System Requirements | Windows 2000/XP/2003/Vista, Windows 7/8/8.1, Mac, Linux |
| Environment | Operating Temperature: 0°C~40°C (32°F ~104°F) Storage Temperature: -40°C~70°C (-40°F ~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Downloads
Additional Information
| Device | Starter Kit, |
