Product Details
Digital Multimeter 1000V AC/DC Intrinsically Safe, Auto Range, USB Interface, Dual Display, RES:0.1Ω - 60MΩ, FREQ:5Hz-1MHz, CAP:60n,600n,6µ,60µ,600µ,20mF, Back Light, 635g

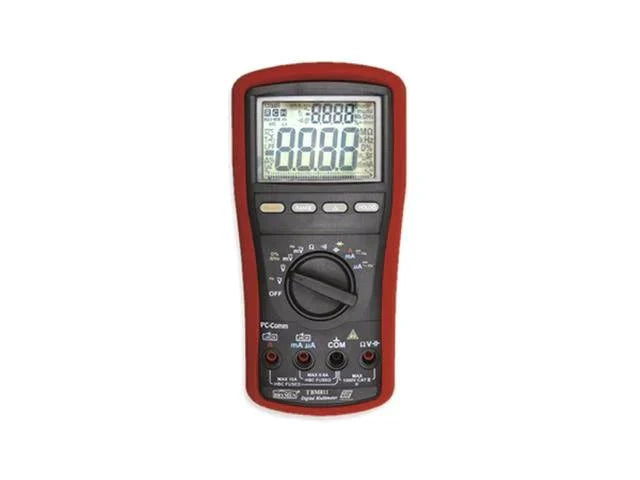

Digital Multimeter 1000V AC/DC
Features
- Splash/Drop Proof
- 1000 VAC/DC
- USB Interface
- Dual display
- Back light
Specifications
- DC/AC Voltage : 60m,600m,6,600,1000V
- DC/AC Current : 600μ,6000μ,60m,600m, 6,10A
- Resistance : 0.1Ω - 60MΩ
- Frequency : 5Hz - 1MHz
- Capacitance : 60n,600n,6μ,60μ,600μ,20mF
Accuracy
- DC Voltage : 0.08% + 2 Digit
- AC Voltage : 2.0% + 3 Digit
- DC Current : 0.2% + 4 Digit
- AC Current : 1.0% + 4 Digit
- Resistance : 1.5% + 5 Digit
- Frequency : 0.004% + 4 Digit
- Capacitance : 5.0% + 5 Digit
Protection
- DC/AC Voltage : 1050Vrms,1450V PEAK
- AC/DC Current : 0.44A/1000V Fuse (IR10kA)
- 11A/1000V Fuse (IR20kA)
- Resistance : 1.2V DC OPEN CIRCUIT
- Input Warning: Yes
- Transient : 12kV SURGE
- Protection : (1.2/50 μs) SURGE
Downloads
Additional Information
| Device | Digital Multimeter |
| Type | 1000V AC/DC |
