Product Details

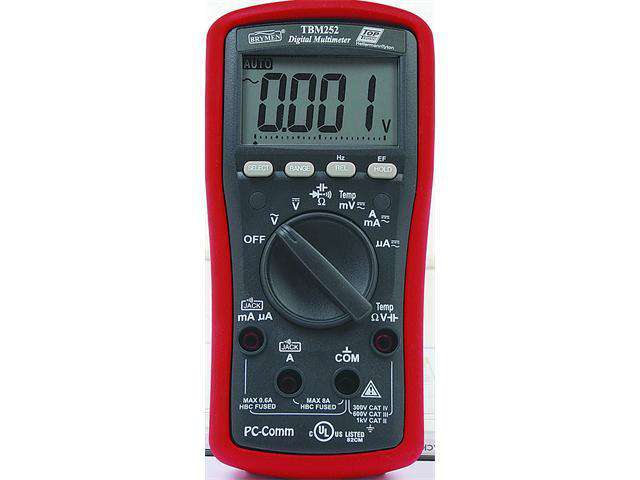

General Purpose Digital Multimeter
Digital Multimeter
Features
- Bar graph
- Beep guard
- USB Interface
- Temperature Measurement
- EF detection
- Seperate battery compartment
- Auto-ranging Relative Zero mode
- Display Hold
- Interface capabilities with PC computer
- Input warning detection
Specifications
- Display: 3- 5/6; digits 6,000 counts
- Update Rate: 5 per second nominal
- Low Battery: Below approx. 2.3V
- Power Supply: 1.5V AAA Size battery X 2
- Power Consumption (typical): 3.5mA
- 24 Segments Bar graph: 40 per second max
- Operating Temperature: 0°C to 40°C
- Dimensions (mm) : 161(L) x 80(W) x 50(H)
- Weight: Approx. 340 gm (With Holster)
Downloads
Additional Information
| Device | Multimeter |
| Type | Digital |
| Highlights | AC Current | Capacitance | DC Current | AC Voltage | DC Voltage | Resistance | Temperature | Diode testing | Continuity Testing |
