Product Details

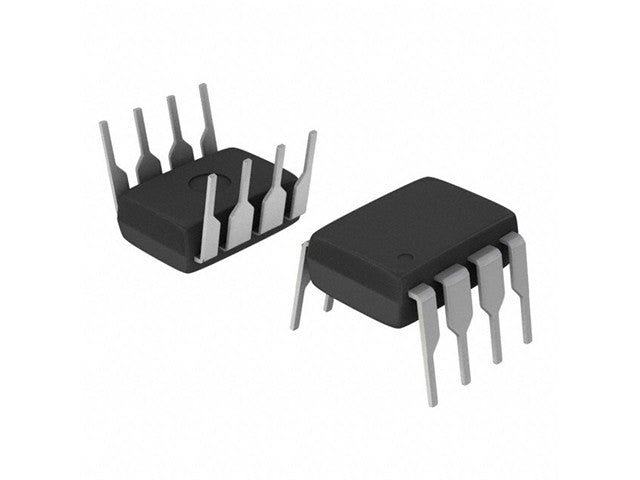

Dual Channel Optocoupler CTR=100-600
Dual CH Optocoupler
Specifications
|
Number of Channels
|
2
|
|
Voltage - Isolation
|
5300Vrms
|
|
Current Transfer Ratio (Min)
|
50% @ 5mA
|
|
Current Transfer Ratio (Max)
|
600% @ 5mA
|
|
Rise / Fall Time (Typ)
|
4µs, 3µs
|
|
Input Type
|
DC
|
|
Output Type
|
Transistor
|
|
Voltage - Output (Max)
|
55V
|
|
Current - Output / Channel
|
50mA
|
|
Voltage - Forward (Vf) (Typ)
|
1.15V
|
|
Current - DC Forward (If) (Max)
|
50 mA
|
|
Vce Saturation (Max)
|
400mV
|
|
Operating Temperature
|
-30°C ~ 100°C
|
|
Mounting Type
|
Through Hole
|
|
Package / Case
|
8-DIP (0.300", 7.62mm)
|
|
Supplier Device Package
|
8-DIP
|
Additional Information
| Device | Optocoupler |
| Type | 2 Channel |
