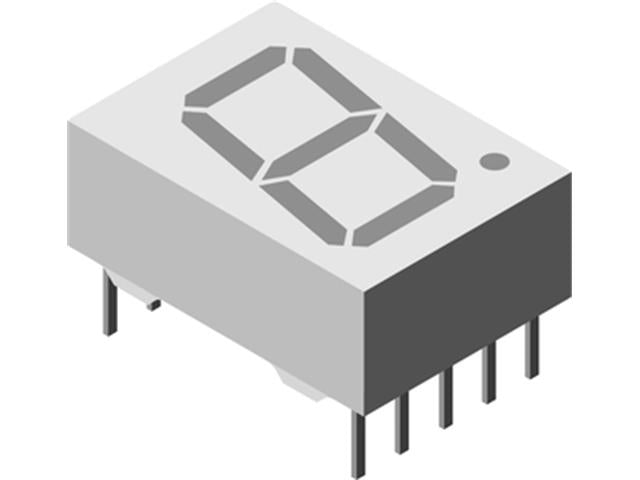

Display 0.56" Single Digit CCOR
0.56" Single Digit Display
Specifications
| Display Type |
7-Segment |
| Number of Characters |
1 |
| LED Colours |
Red-Orange |
| Number of Segments |
7 |
| Dominant Wavelength |
625 nm |
| Character Width |
7.4mm |
| Character Height |
13mm |
| Common Connection |
Cathode |
| Mounting Type |
Through Hole |
| External Height |
7mm |
| External Dimensions |
7 x 17.5mm |
| External Width |
17.5mm |
| Luminous Intensity |
5 mcd |
| Colour of Face |
Grey |
| Power Dissipation |
550mW |
| Forward Voltage |
2 V |
| Minimum Operating Temperature |
-40°C |
| Forward Current |
25mA |
| Maximum Operating Temperature |
+85°C |
| Decimal Orientation |
Right Side |
| Operating Temperature Range |
-40 → +85°C |
Downloads
Additional Information
| Device |
Display |
| Type |
0.56" | Single Digit |
