Product Details

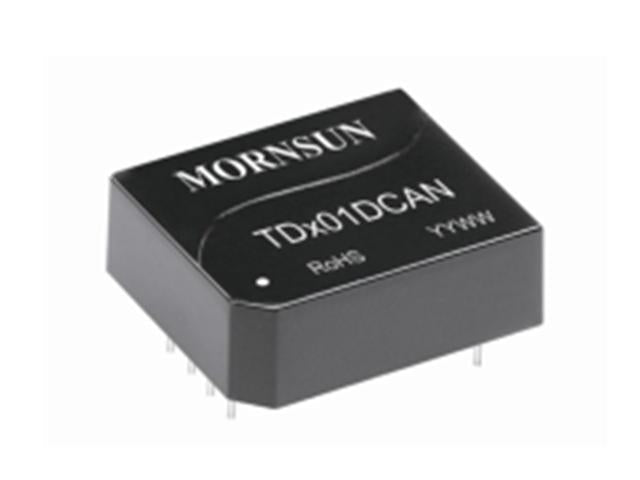

Mornsun Single Universal Cam Isolation Transciever Module Input = 3.0-3.6VDC 17x20mm Thru Hole
Single Isolation Transciever Module
Specifications
- Two-terminal isolation (input and output are mutually isolated)
- Integrated Isolated DC/DC converter
- Busprotection
- 3000VDC isolation
- Operating temperature range : -40°~+105°
- High speed data rate : 1Mbps
- Complies with ISO11898 standard
- An unpowered node does not disturb the buslines
- Connect upto 110 nodes on one bus
Downloads
Additional Information
| Device | Transciever Module |
| Type | Single | Isolation |
| Input Voltage | 3.0-3.6VDC |
| Size | 17 x 20mm |
